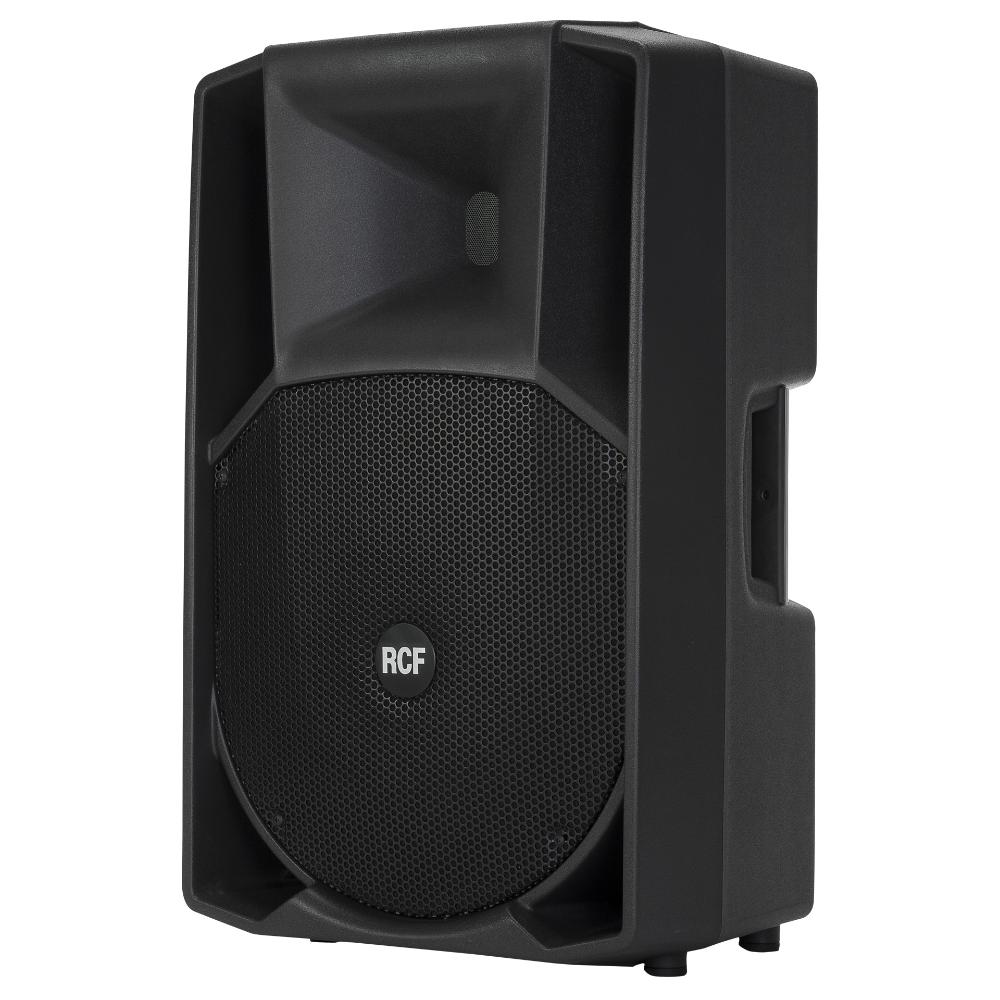

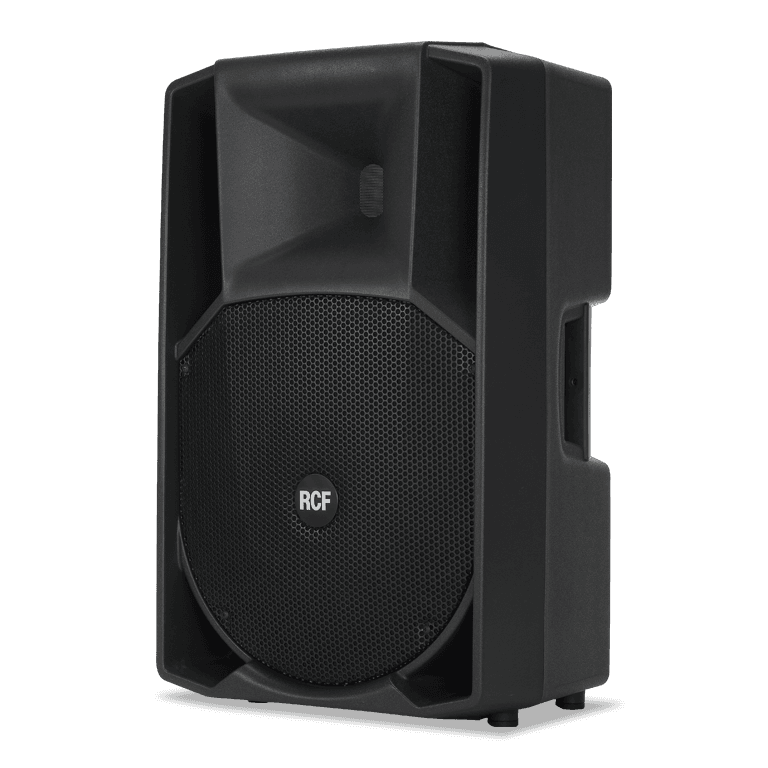

ART 715-A MK II

ART 715-A MK II

ART 715-A MK II

THÔNG TIN SẢN PHẨM:



Tired of worrying about the fact that the voice isn't cutting through the mix on the stage?

Well, why not try the ART 715-A as a stage monitor.

This is the perfect speaker for live sound situations where you need extra punch in bass reproduction and extremely accurate high frequency response to hear the voice when the band is playing at full throttle.

CHI TIẾT KỸ THUẬT

FEATURES

1400 Watt Peak, 700 Watt RMS digital amplifier

130 dB max spl

90 x 60, Wide dispersion constant directivity horn

15" woofer, high power 3.0" voice coil

1" HF driver, Mylar dome, 1.75" voice coil

DSP Processing



ACOUSTICAL SPECIFICATIONS

Frequency Response -3 dB:50 Hz ÷ 20000 Hz

Max SPL:130 dB

Horizontal coverage angle:90°

Vertical coverage angle:60°

Compression Driver:1", 1.75" v.c.

Woofer:15", 3.0" v.c.



INPUT/OUTPUT SECTION

Input signal:bal / unbal

Input connectors:xlr-jack

Output connectors:xlr

Input sensitivity:-2 dBu / +4 dBu



PROCESSOR SECTION

Crossover frequencies:1700 Hz

Protections:Thermal, rms

Limiter:Soft limiter

Controls:Volume, EQ shape



AMPLIFIER SPECIFICATIONS

Total power:1400 W PEAK

  . High frequencies:400 W PEAK

  . Low frequencies:1000 W PEAK

Total power:700 W RMS

  . High frequencies:200 W RMS

  . Low frequencies:500 W RMS

Cooling:Convection / forced

Connections:VDE connector in



CABINET

Cabinet Material:Composite PP

Hardware:2xM10 flying p.

Handles:2 side, 1 top

Pole Mount/Cap:Yes

Colour:Black



PHYSICAL SPECIFICATIONS

Height:708 / 27.87 mm/inch

Width:437 / 17.2 mm/inch

Depth:389 / 15.31 mm/inch

Net Weight:19.4 / 42.76 kg/lbs
