EVOX 8

EVOX 8

EVOX 8

THÔNG TIN SẢN PHẨM:

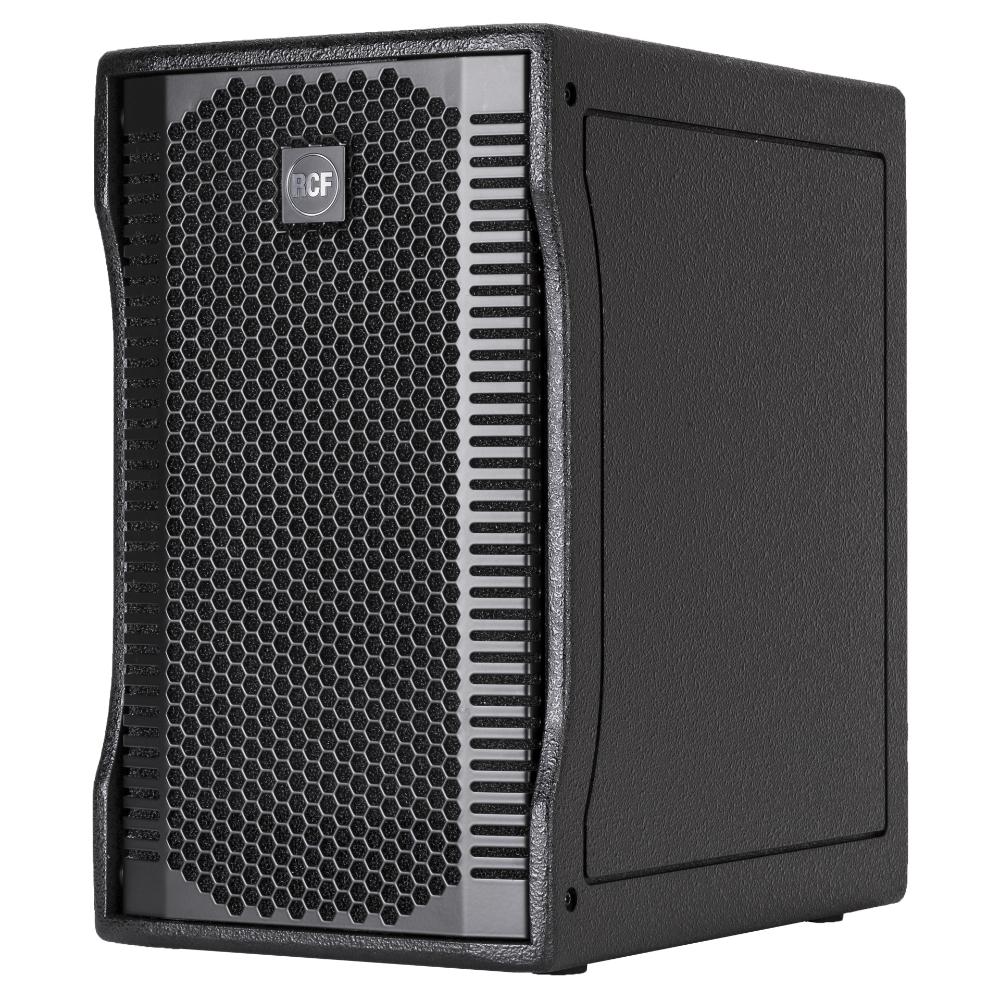

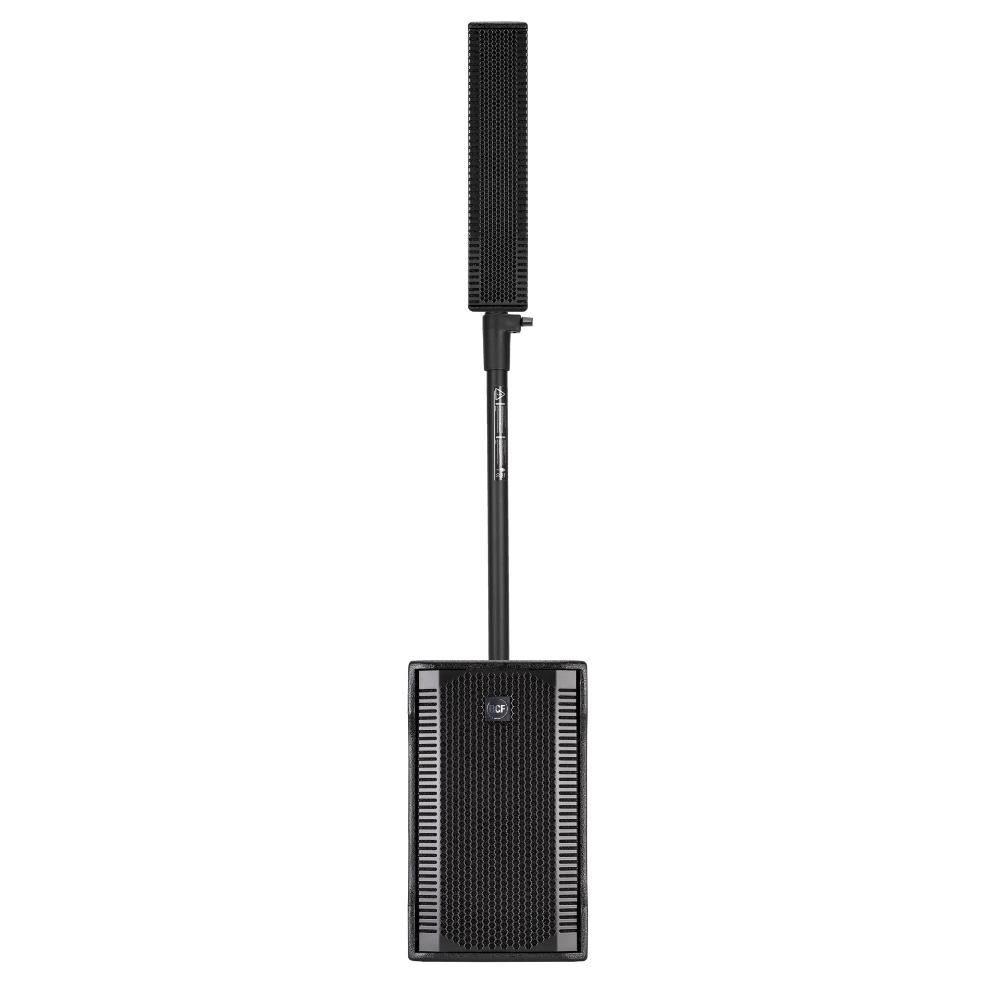

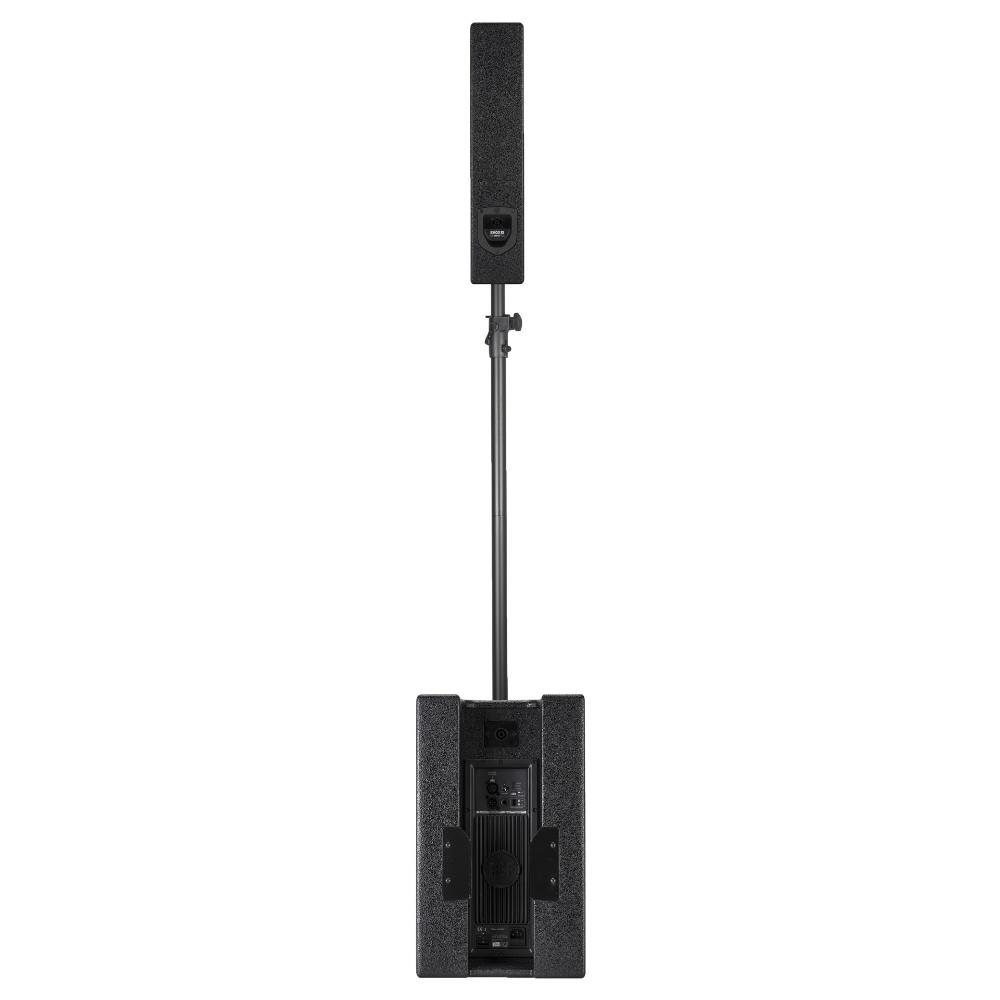

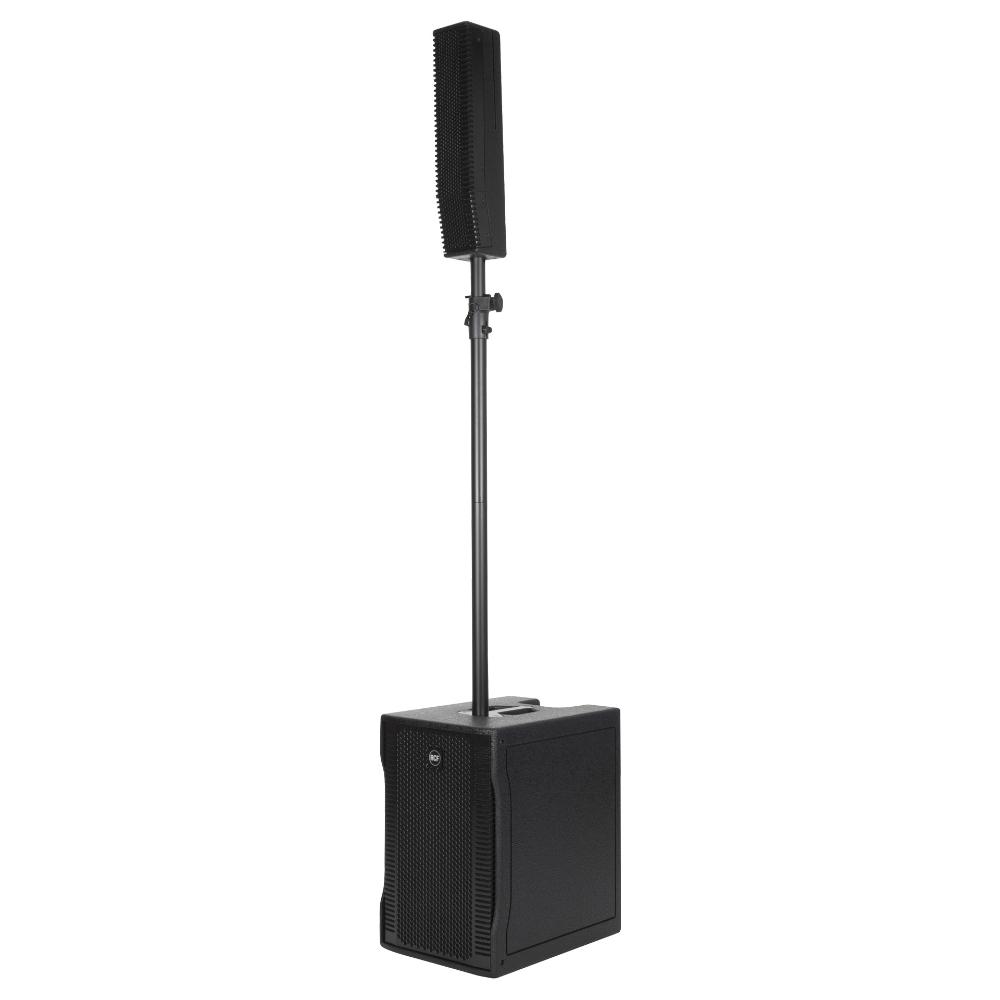

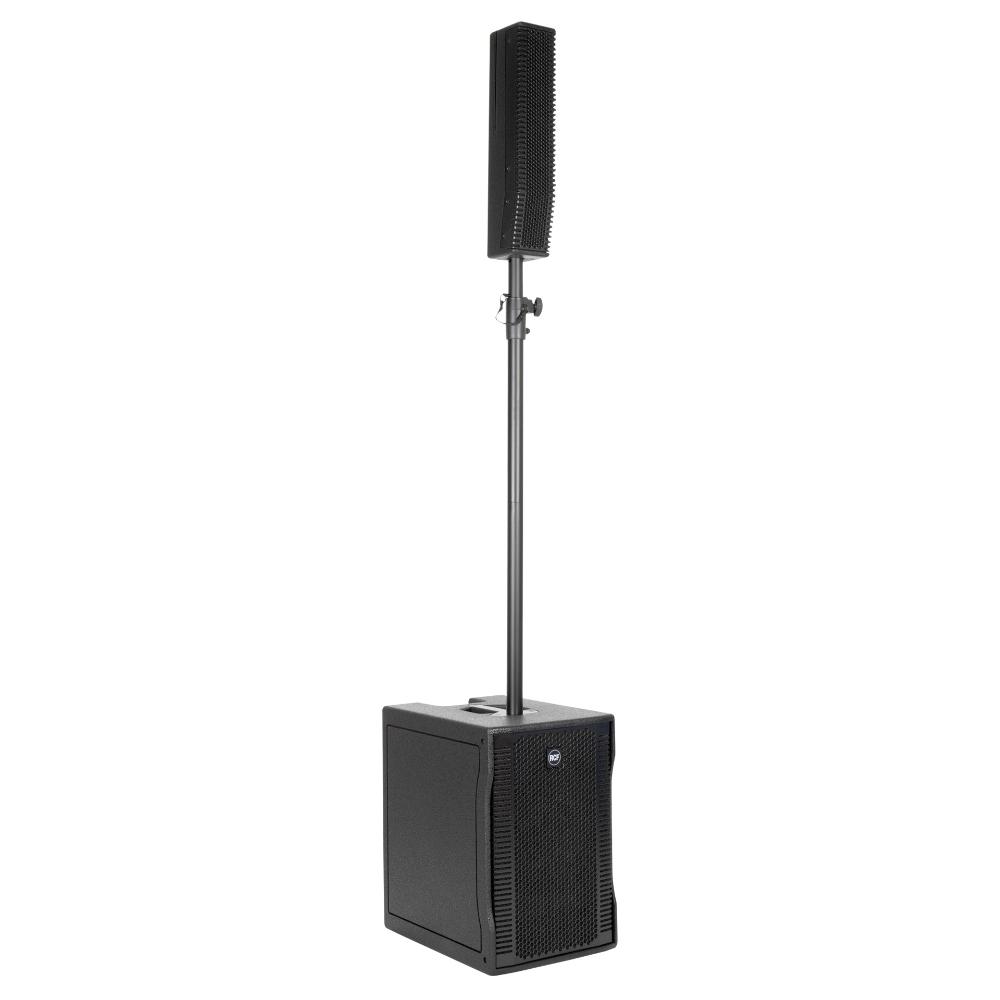

Evox 8 is a portable compact size sound reinforcement system. Evox 8 combines the quality and reliability of RCF transducers with a very high amplification power. The system features eight 2.0” full range transducers in the line source satellite and a deep sounding 12” woofer in a bass reflex enclosure. The system is designed to be the perfect high output solution for live music and DJs. The unique vocal attitude and SPL make Evox 8 the perfect tool for larger presentations, corporate events and congresses.

CHI TIẾT KỸ THUẬT

EVOX TWO-WAY ARRAYS

EVOX array design features constant horizontal directivity coverage of 120°, offering a perfect listening experience to the audience. The vertical array design is progressively shaped to guarantee a correct listening from the first row and to avoid a high frequency beaming typical of straight array



LIVE SOUND

Extensive testing with instruments and voices during the design process as well as power and reliability testing make the EVOX system the perfect workmates for solo musicians or bands.



DJS

Extremely deep response, precise low frequency control and incredible audio quality, easy to transport and quick to set up. EVOX is without any doubt a smart choice for DJs.



CONFERENCES

Extraordinary clarity and dynamic of vocal reproduction, both at low and very high levels. EVOX is a great tool for conferences and speeches.



FEATURES

1400 Watt

128 dB max SPL

40 Hz 20 kHz frequency response

12" Woofer, 2.5" v.c.

8 x 2" Ultra compact fullrange, 1.0 v.c.

120° x 30° slightly tilted pattern control

Innovative DSP processing

Pole mountable, easy set-up and transportation



ACOUSTICAL SPECIFICATIONS

Frequency Response -3 dB:40 Hz ÷ 20 Hz

Max SPL:128 dB

Horizontal coverage angle:120°

Vertical coverage angle:30°

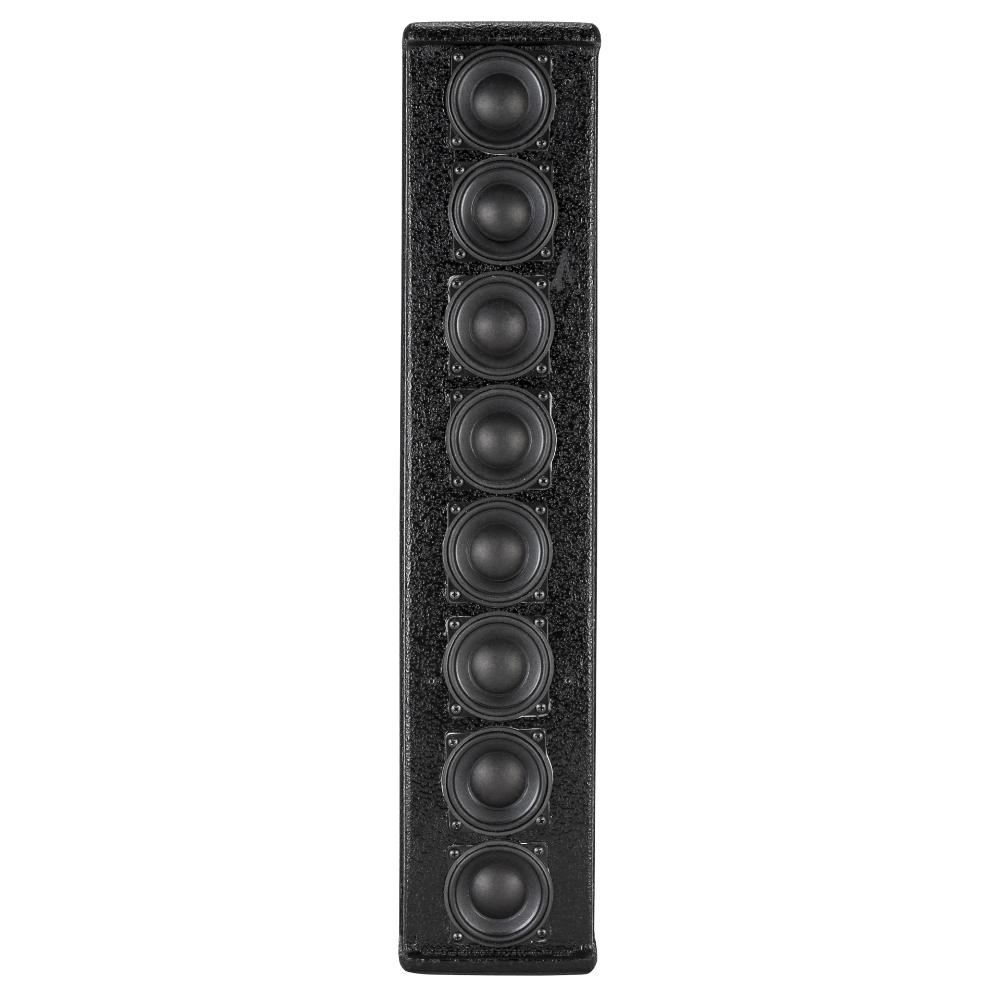

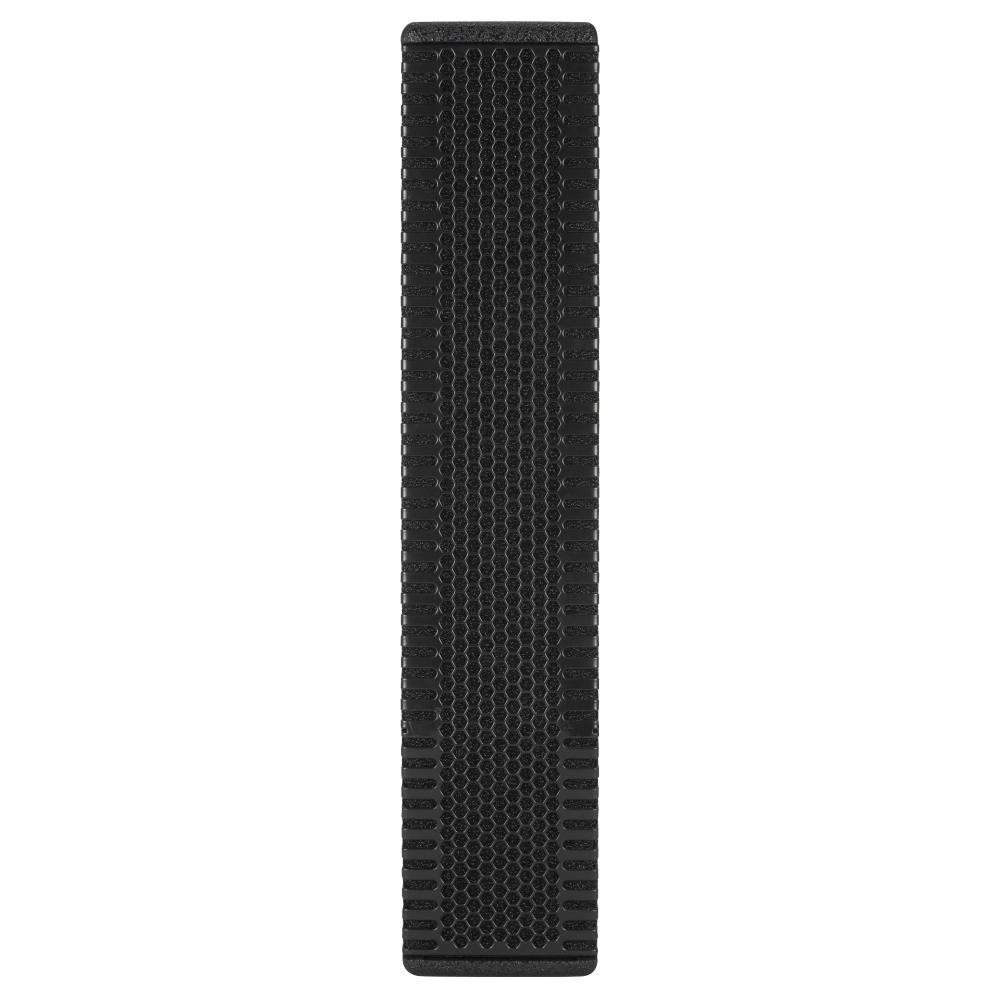

Fullrange:8 x 2", 1.0" v.c.

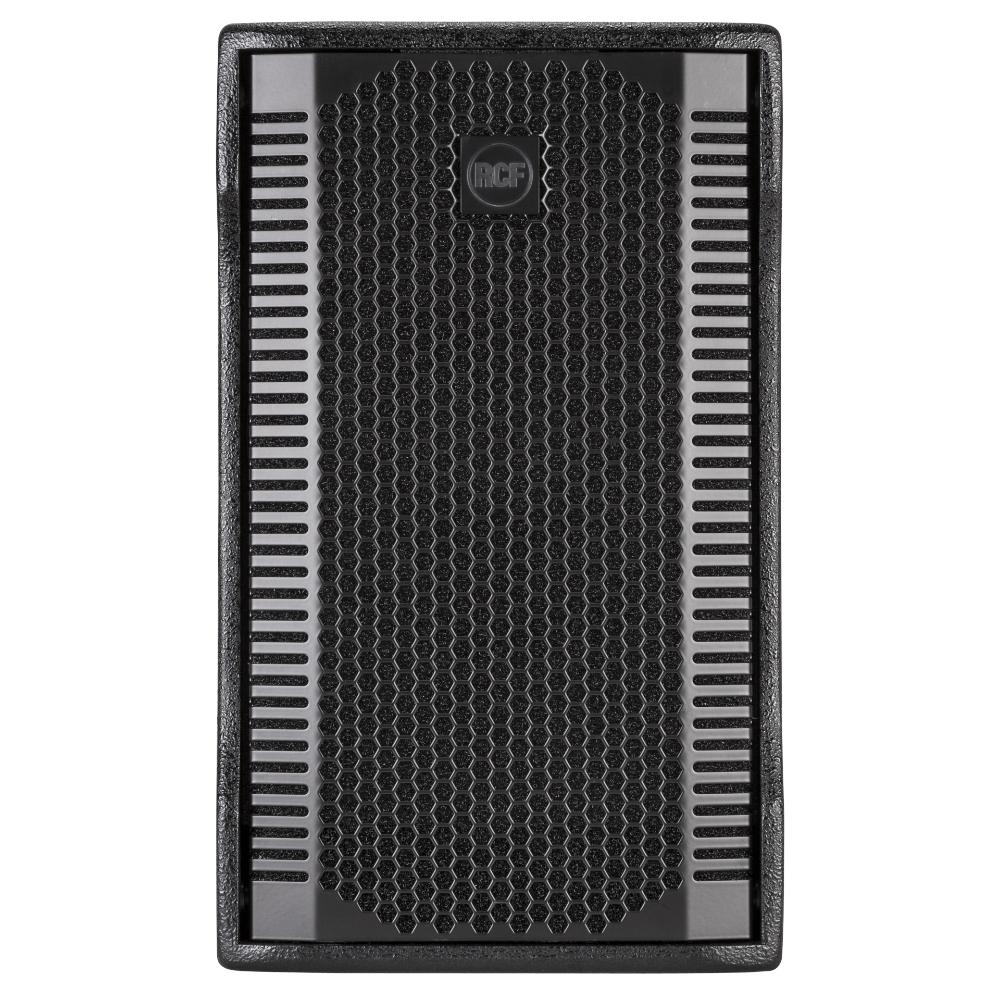

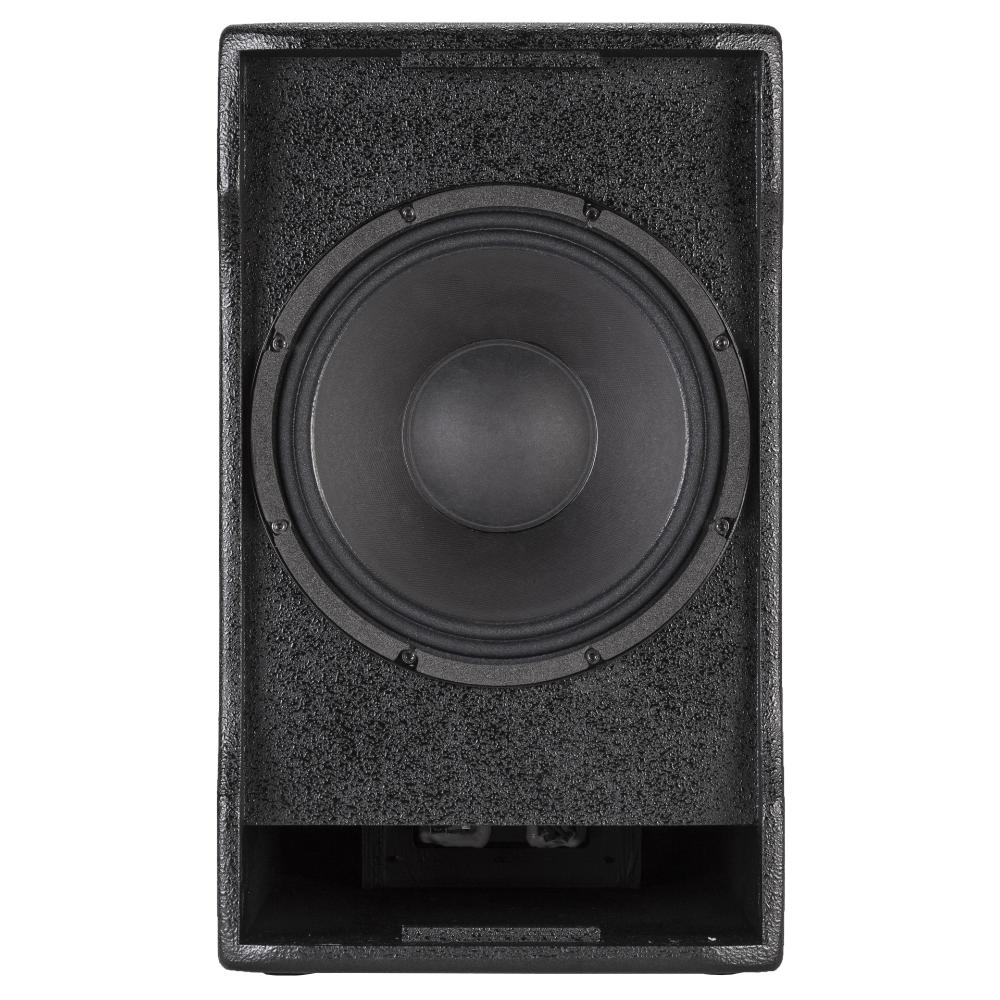

Woofer:12", 2.5" v.c.

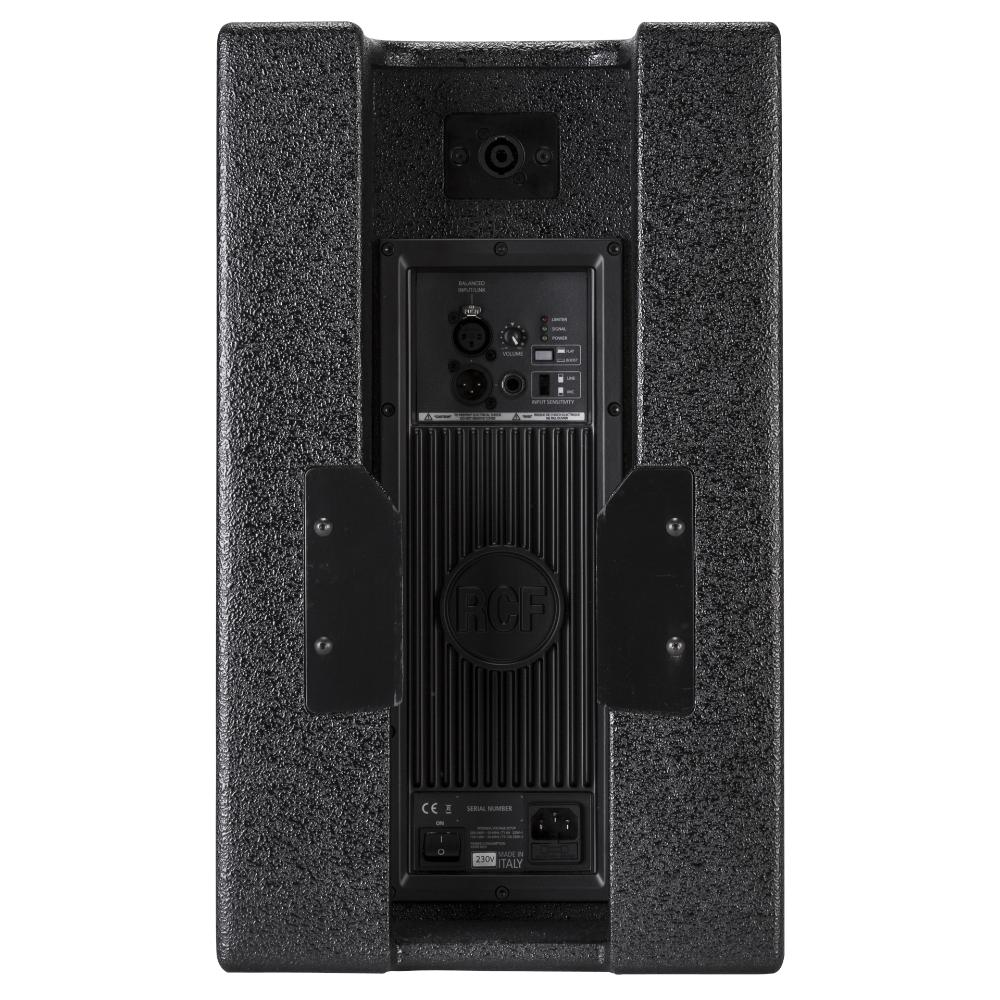

INPUT/OUTPUT SECTION

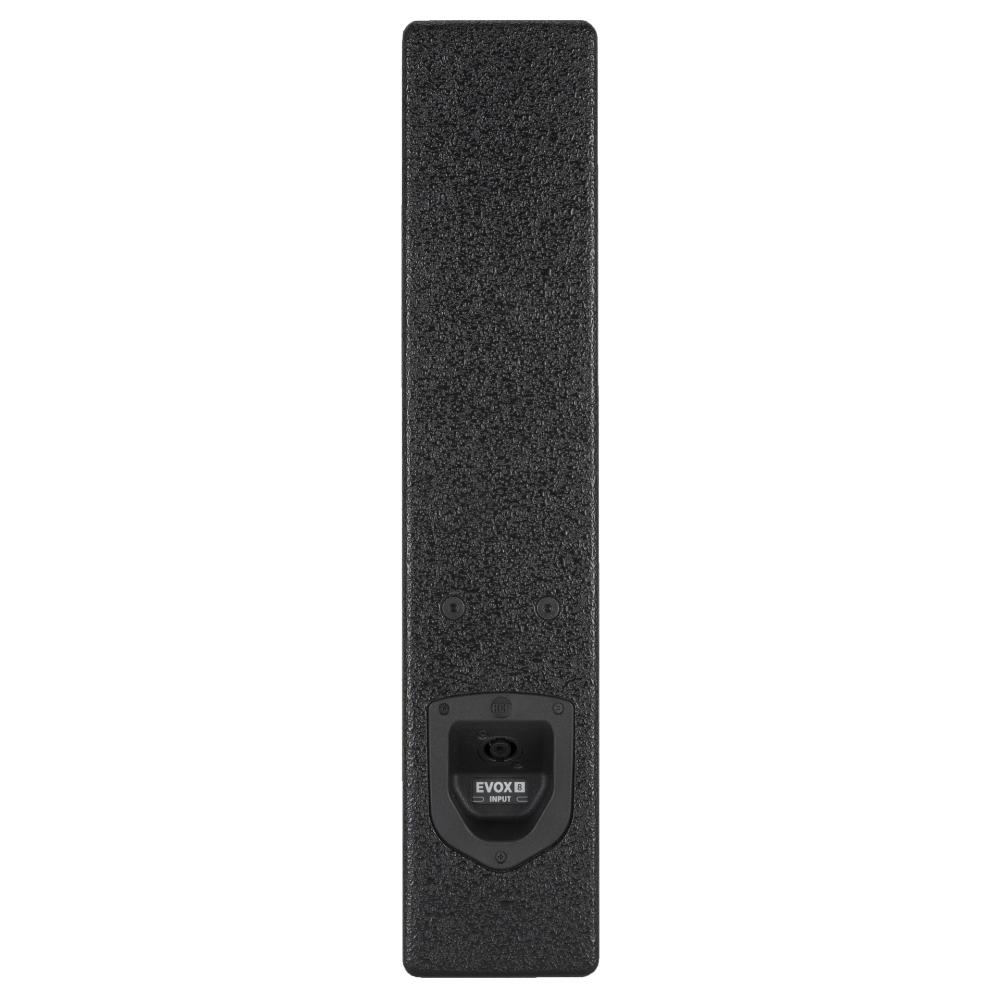

Input connectors:Jack-XLR male

Output connectors:XLR female

Input sensitivity:-2 dBu / + 4 dBu



PROCESSOR SECTION

Crossover frequencies:220 Hz

Protections:thermal, rms

Limiter:Soft limiter

Controls:Volume, EQ, phase, xover



AMPLIFIER SPECIFICATIONS

Total power:1400 W PEAK

 . High frequencies:400 W PEAK

 . Low frequencies:1000 W PEAK

Total power:700 W RMS

 . High frequencies:200 W RMS

 . Low frequencies:500 W RMS

Cooling:Convection

Connections:VDE connector



CABINET

Cabinet Material:Baltic birch plywood

Hardware:2 x M6

Handles:1 top

Pole Mount/Cap:Yes

Colour:black



PHYSICAL SPECIFICATIONS

Height:530/20.86 mm/inch

Width:346/13.62 mm/inch

Depth:459/18.10 mm/inch

Net Weight:23.8/50.70 kg/lbs
