TTL36-AS

TTL36-AS

TTL36-AS

THÔNG TIN SẢN PHẨM:

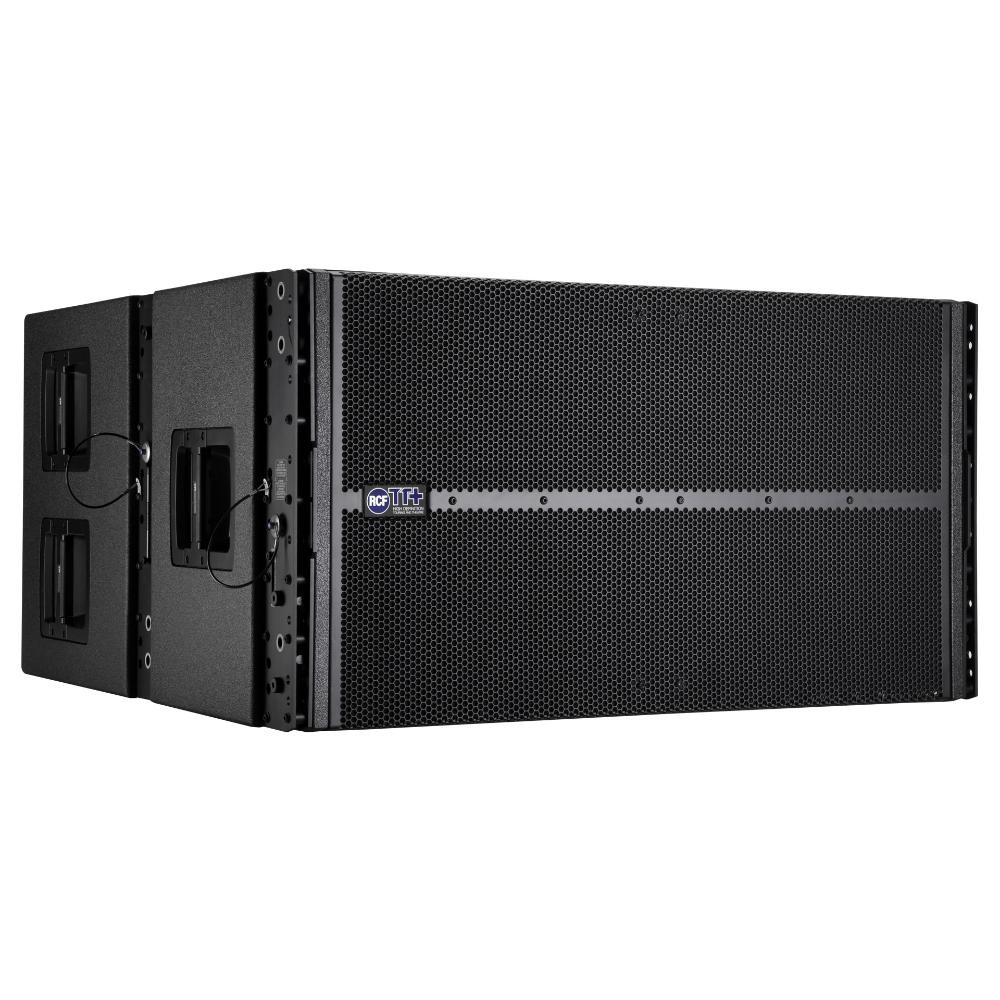

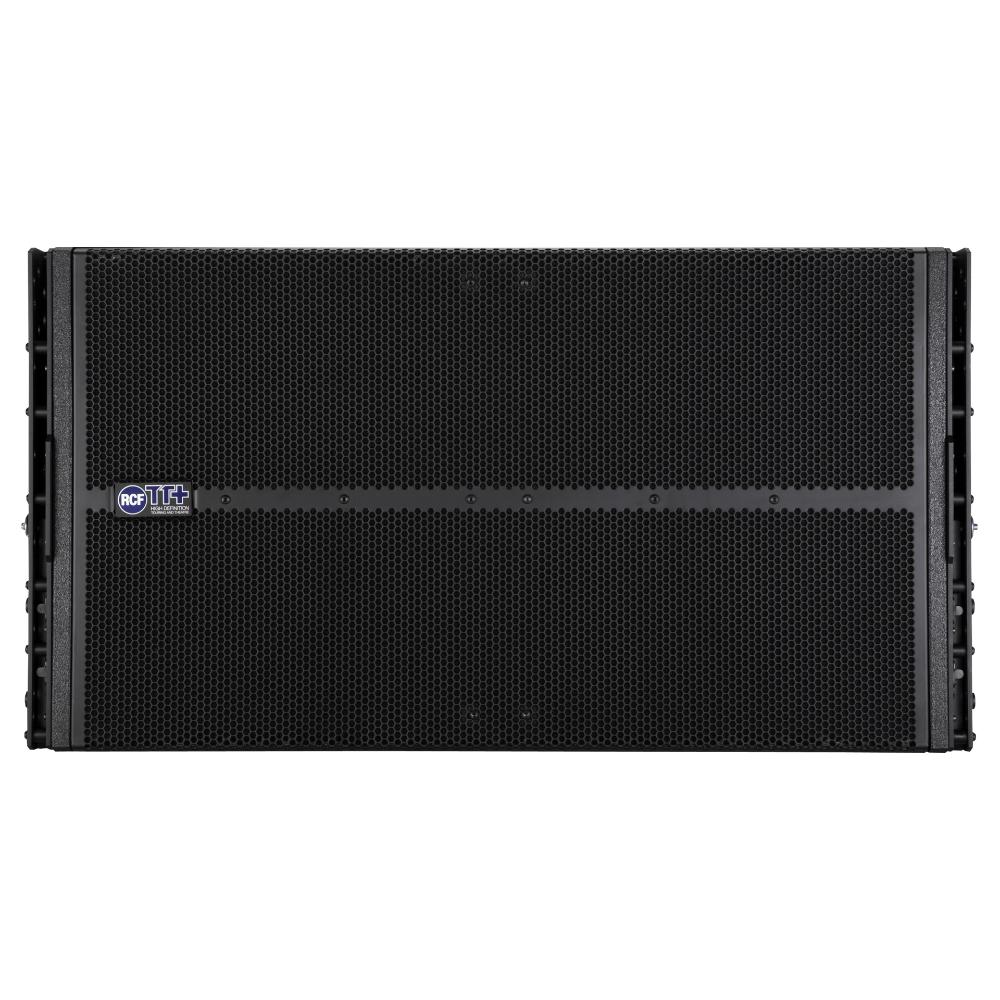

The TTL36-AS is the ideal flyable bass complement for the TTL55-A array system.

The clam-shell design guarantees the maximum output per size while the 2 x 4.5” voice coil vented 18” woofer design offers the minimum of power compression. The TTL36-AS is perfect to create flown systems for theatrical and indoor requirements. For very large outdoor systems is the perfect complement to reinforce the TTL55-A bass performance in combination with the ultra powerful TTS56-A subwoofers.

CHI TIẾT KỸ THUẬT

FEATURES

4000 Watt (2 x 2000 W digital switching amplifiers)

2 x 18" high power neodymium woofer, 4.5" v. c.

96 Khz, 32 bit DSP processing

Remote monitoring and control

Time delay alignment

Cardioid preset for stacking groups of 3

Tour grade Baltic birch cabinet, integrated rigging.

RDNet on board

Maximum output per size



ACOUSTICAL SPECIFICATIONS

Frequency Response -3 dB:35 Hz ÷ 120 Hz

Max SPL:142 dB

Woofer:2 x 18" neo, 4.5" voice coil



INPUT/OUTPUT SECTION

Input signal:Bal/unbal

Input connectors:XLR, RDNet Ethercon

Output connectors:XLR, RDNet Ethercon

Input sensitivity:-2 dBu / + 10 dBu



PROCESSOR SECTION

Crossover frequencies:80 Hz/100 Hz

Protections:Thermal, Excurs., RMS

Limiter:soft limiter

Controls:DSP controlled



AMPLIFIER SPECIFICATIONS

Total power:2 x 2000 W RMS

Low frequencies:2 x 2000 W RMS

Cooling:Convection/Forced

Connections:Powercon



CABINET

Cabinet Material:Baltic birch

Hardware:Array fly-ware

Handles:6 on side

Colour:Black



PHYSICAL SPECIFICATIONS

Height:536 / 21.10 mm/inch

Width:1022 / 40.23 mm/inch

Depth:970 / 38.18 mm/inch

Net Weight:120 / 264.55 kg/lbs
