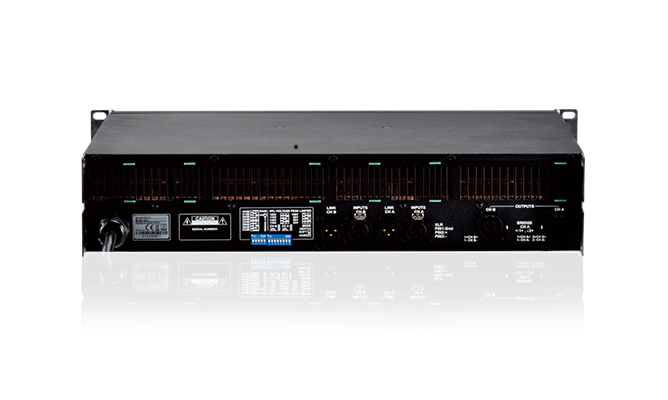

Qx2 Amplifier

THÔNG TIN SẢN PHẨM:

New generation with high technique speaker system-Qx2

Outstanding 2-CH professional power amplifier

CHI TIẾT KỸ THUẬT

Model	Qx2
Number of channels	2
Peak output voltage per channel	195V
8 ohms per ch.(all ch.’ s driven)	2300A
4 ohms per ch.(all ch.’ s driven)	4400W
2 ohms per ch.(all ch.’ s driven)	6500W
8 ohms bridged per ch	8800W
4 ohms bridged per ch	13000W
Performance with Gain	35dB, VPL:195V
THD 20Hz-20kHz for 1W	<0.1%
THD at 1 Khz and 1 dB below clipping	<0.05%
Signal to noise ratio	>112dBA
Channel separation(Crosstalk)at 1 Khz	>70dB
Frequency response(1W into 8 ohms)+0/-3dB	6.8Hz - 34 KHz
Input Impedance	20KOhm
Input common mode rejection, CMR	54dB
Output impedance @ 100 Hz 100Ｈz	19mOhm
Soft start/inrush current draw	Yes/max.5A
Product dimension	445x88.8x425mm
Net Weight	13.2 Kgs
