Model no. |
RL0.5 |
|
Rated power |
LF:400W/HF:110W |
|
Maximum power |
LF:800W/HF:220W |
|
Nominal impedance |
LF:16Ω/HF:16Ω |
|
Sensitivity |
LF:102.5db/ HF:108.5db |
|
Maximum output sound pressure level |
LF：131.5db/HF:134.9db |
|
Frequency response |
70Hz-18KHz, -3dB |
|
Woofer |
2x8"(2"Voice Coil) |
|
Tweeter |
1*3"(3"Voice Coil) |
|
Horizontal spread angle |
100°（-6dB） |
|
Vertical expansion angle |
视实际吊装数量集成 |
|
Connection ports |
2 x Neutrik NL-8MPR |
|
Connection number |
+1/-1(Link), +2/-2(Link) +3/-3(LF), +4/-4(HF) |
|
Cabinet material |
Black PU resistant paint |
|
Dimensions |
747*241*508mm |
|
Net Weight |
28 Kgs |

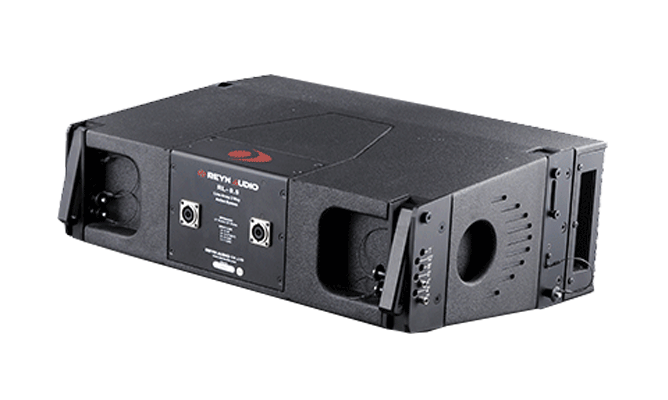

RL0.5 Line Array
Technical & Specification
System data
- Frequency range：70Hz-18KHz(-3dB)
- Maximum output sound pressure level : LF/134.5dB； HF/134.9dB
- Sensitivity（1W/1m）: LF/102.5dB；HF/108.5dB
Loudspeaker data
- Rated power(AES):LF/400W；HF/110W
- Program power( 3 dB greater than the Nominal rating)：LF/800W；HF/220W
- Nominal impedance: LF/16Ω；HF/16Ω
- LF unit:2x8"(2" Voice Coil)
- HF unit:1x3"(Compression driver )
- Horizontal spreading angle:100°(-6dB)
- Vertical: Dependent upon number of elements and line source curvature
- Connection index ：+1/-1(Link),+2/-2(Link) +3/-3(LF),+4/-4(HF)
- Connectors：2 x Neutrik NL-8MPR
Dimensions / weight
- Finish material：Black PU abrasive-resistant paint
- Cabinet dimension(WxHxD)mm: 747*241*508mm
- Net Weight : 28 Kg
-
