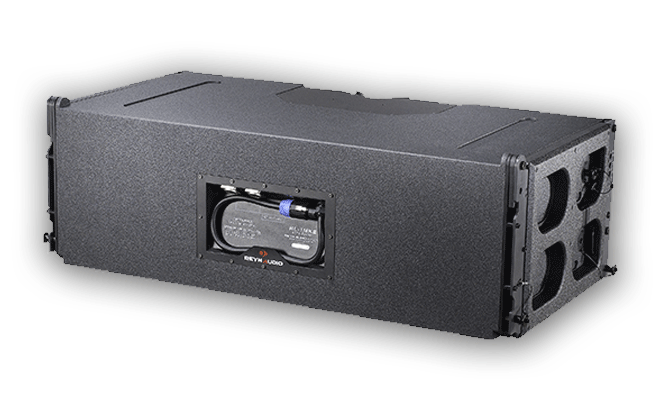

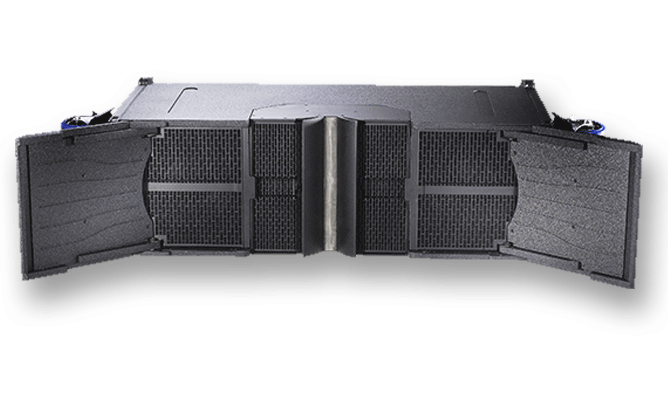

RL1 Line Array

RL1 Line Array

RL1 Line Array

Technical & Specification

System data

  • Frequency range：45Hz-18KHz(-3dB)
  • Maximum output sound pressure level ： LF/141dB；MF/143.6dB；HF/143.9dB
  • Sensitivity（1W/1m）： LF/102dB； MF/108.5dB； HF/114.5dB



Loudspeaker data

  • Rated power：LF1/1000W；LF2/1000W； MF/800W；HF/220W
  • Program power：LF1/2000W；LF2/2000W； MF/1600W；HF/440W
  • Nominal impedance：LF1/8ohm；LF2/8ohm MF/8ohm；HF/8ohm
  • LF unit：2x12”
  • MF unit: 4x6.5”
  • HF unit: 2x3" (Compression driver )
  • Connection index ：1+/1- (LF1)；2+/2- (LF2)；3+/3- (MF)；4+/4- (HF)
  • Connectors：
    • 2x 8-points Speakon®
    • 1xLink cable
  • Directivity：
    • H(90 ° -120°)
    • V(Dependent upon number of elements and line source curvature)



Dimensions / weight

  • Finish material：Black PU abrasive-resistant paint
  • Cabinet dimension（WxHxD）： 1178x390x587mm
  • Net Weight : 102 Kg

  • Dimensions

    CHI TIẾT KỸ THUẬT

    Model no.

    RL1

    Rated power

    LF1/1000W; LF2/1000W; MF/600W; HF/220W

    Maximum power

    LF1/2000W; LF2/2000W; MF/1200W; HF/440W

    Sensitivity

    LF/102dB; MF/108.5dB; HF/114.5dB

    Maximum output sound pressure level

    LF/138dB; MF/137.5dB; HF/141dB

    Nominal impedance

    LF1/8ohm; LF2/8ohm; MF/8ohm; HF/8ohm;

    Frequency response

    45Hz-18KHz,-3dB"

    Woofer

    LF1/12", LF2/12"

    Middle

    MF/4x6.5"

    Tweeter

    HF/2x3"

    Connection ports

    2x 8-points Speakon® 1xLink cable

    Connection number

    1+/1- (LF1)；2+/2- (LF2)；3+/3- (MF)；4+/4- (HF)

    Directivity

    H(90°-120°) V(MAX)

    Cabinet material

    Black PU resistant paint

    Dimensions

    1178x390x587mm

    Net Weight

    102 Kgs
