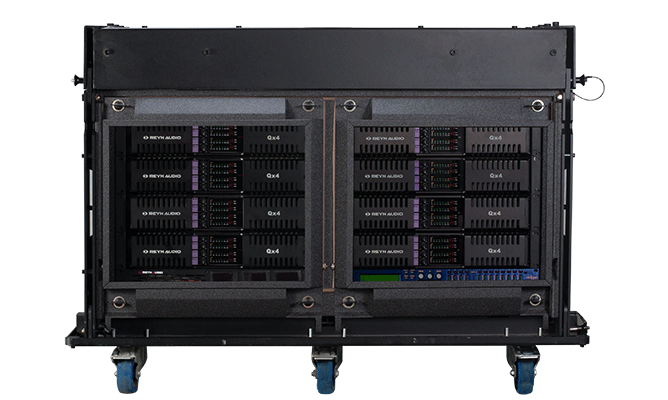

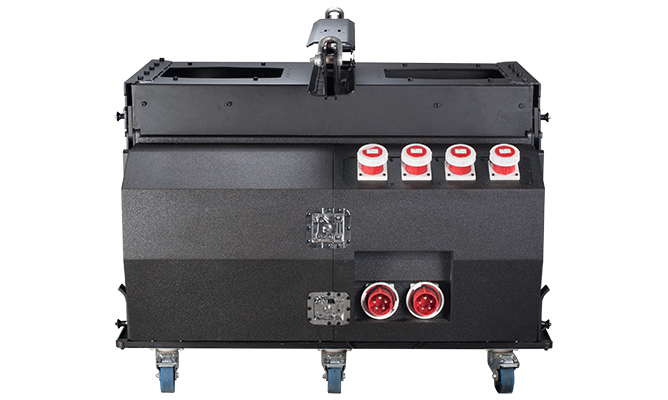

Model no. |
M1 |
|
Amplifier model |
Qx4 |
|
Qty.of amplifier |
8 |
|
Controller model |
1 |
|
Qty.of DMX output cable |
8(one cable with 4 channels) |
|
Qty.of DMX input cable |
4 |
|
DMX Input and output connections |
A to 1+,1-; B to 2+,2-; C to 3+,3-; D to 4+,4- |
|
RS485 controlling line |
1 |
|
Stepping-motor controlling line |
1 |
|
Stepping-motor power sockets |
4 |
|
Stepping-motor control |
1(4 Channels) |
|
IP rate of cabinet |
IP66 |
|
Cabinet material |
Black PU resistant paint |
|
Dimensions |
1156x609x901mm |
|
Net Weight |
262.5 Kgs |
