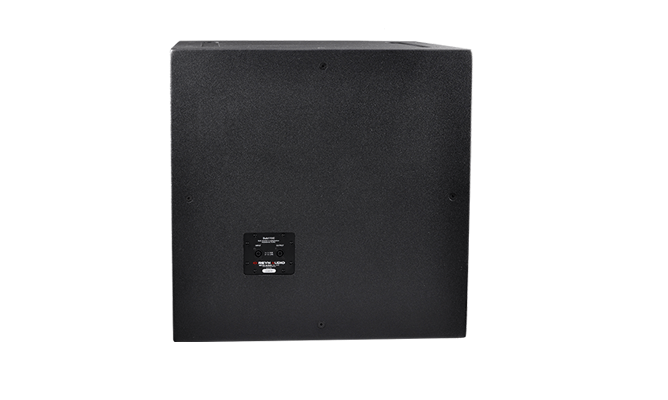

SUB 118C Subwoofer

SUB 118C Subwoofer

SUB 118C Subwoofer

Technical & Specification

System data

  • Frequency range：32Hz-120Hz,-3dB
  • Maximum output sound pressure level ：134dB
  • Sensitivity（1W/1m）：98dB



Loudspeaker data

  • Rated power（AES）：1000W
  • Program power：2000W
  • Nominal impedance：8Ω
  • Speaker dimension：18"（5"Voice Coil）
  • Connection index：NL4-MP:1+/1-（SUB）,2+/2-(Link)
  • Connectors：2x 4-points Speakon®



Dimensions / weight

  • Finish material：Black PU abrasive-resistant paint
  • Cabinet dimension（WxHxD）mm: 650x646x751mm
  • Net Weight : 66.5Kg

  • Dimensions

    CHI TIẾT KỸ THUẬT

    Model no.

    Sub118C (For fixed installation)

    Rated power

    1000W

    Maximum power

    2000W

    Nominal impedance

    8Ω

    Sensitivity

    98dB

    Maximum output sound pressure level

    134dB

    Frequency response

    32Hz-120Hz,-3dB

    Speaker dimensions

    18" (5" Voice Coil)

    Connection ports

    2x4-points Speakon®

    Connection number

    NL4-MP:1+/1-（SUB）,2+/2-(Link)

    Cabinet material

    Black PU resistant paint

    Dimensions

    650x646x751mm

    Net Weight

    66.5 Kgs
