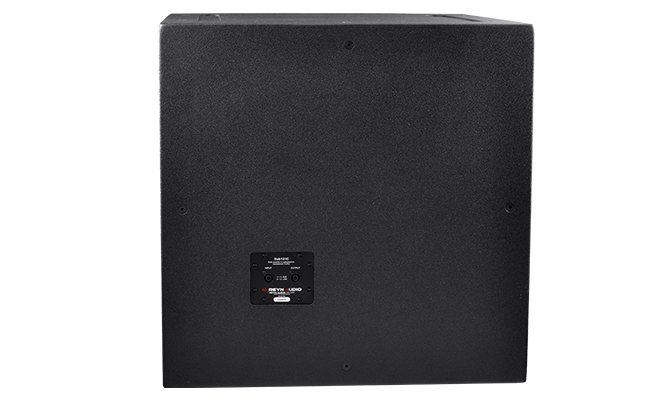

SUB 121C Subwoofer

SUB 121C Subwoofer

SUB 121C Subwoofer

Technical & Specification

System data

  • Frequency range：28Hz-120Hz(-3dB)
  • Maximum output sound pressure level ：135dB
  • Sensitivity（1W/1m）：98.3dB



Loudspeaker data

  • Rated power（AES）：1200W
  • Program power：2400W
  • Nominal impedance：8Ω
  • Unit dimension: 21"(5" Voice Coil)
  • Connection index：NL4-MP:1+/1-（SUB）,2+/2-(Link)
  • Connectors：2x 4-points Speakon®

Dimensions / weight

  • Finish material：Black PU abrasive-resistant paint
  • Cabinet dimension（WxHxD）mm：760x755x880mm
  • Net Weight : 76Kg

  • Dimensions

    CHI TIẾT KỸ THUẬT

    Model no.

    Sub121C (For fixed installation)

    Rated power

    1200W

    Maximum power

    2400W

    Nominal impedance

    8Ω

    Sensitivity

    98.3dB

    Maximum output sound pressure level

    135dB

    Frequency response

    28Hz-120Hz,-3dB

    Speaker dimensions

    21" (5" Voice Coil)

    Connection ports

    2x4-points Speakon®

    Connection number

    NL4-MP:1+/1-（SUB）,2+/2-(Link)

    Cabinet material

    Black PU resistant paint

    Dimensions

    760x755x880mm

    Net Weight

    76 Kgs
