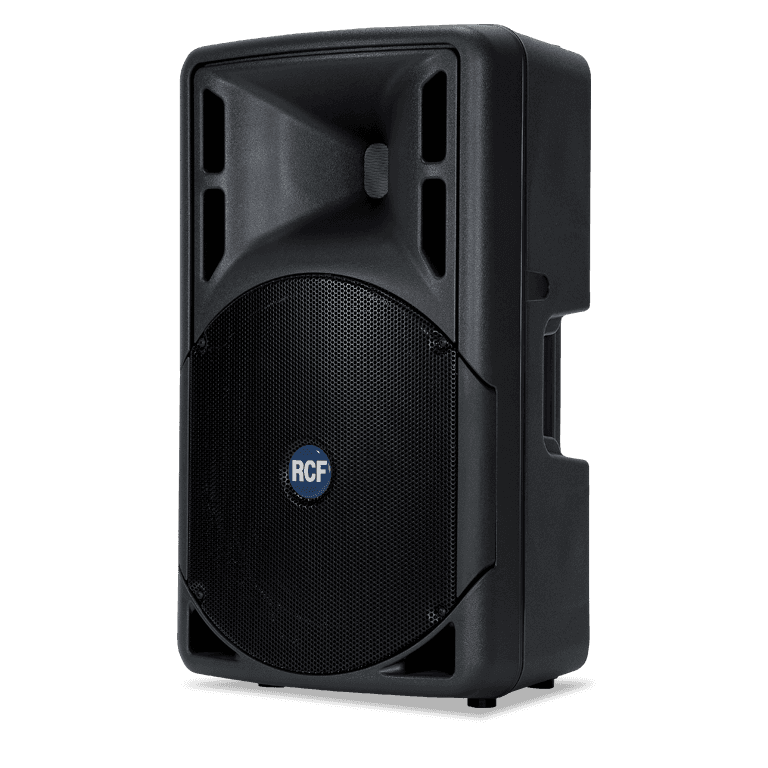

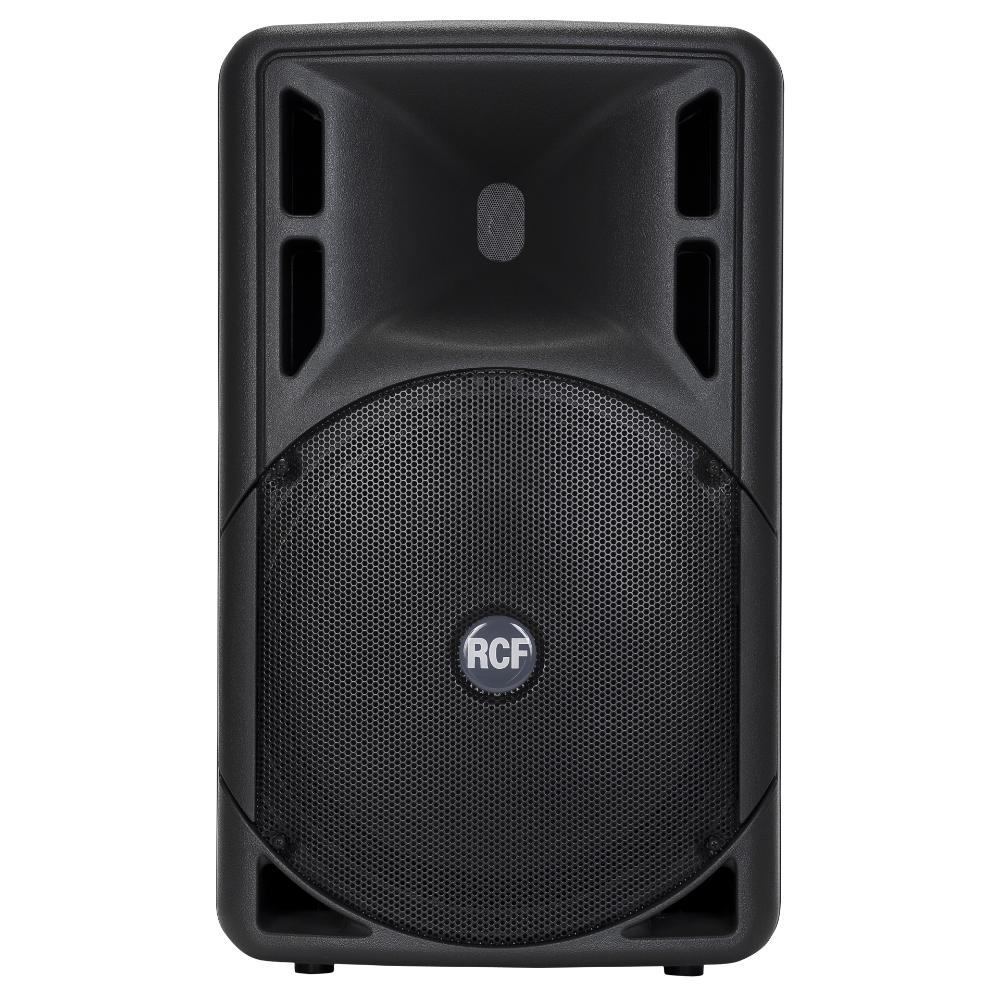

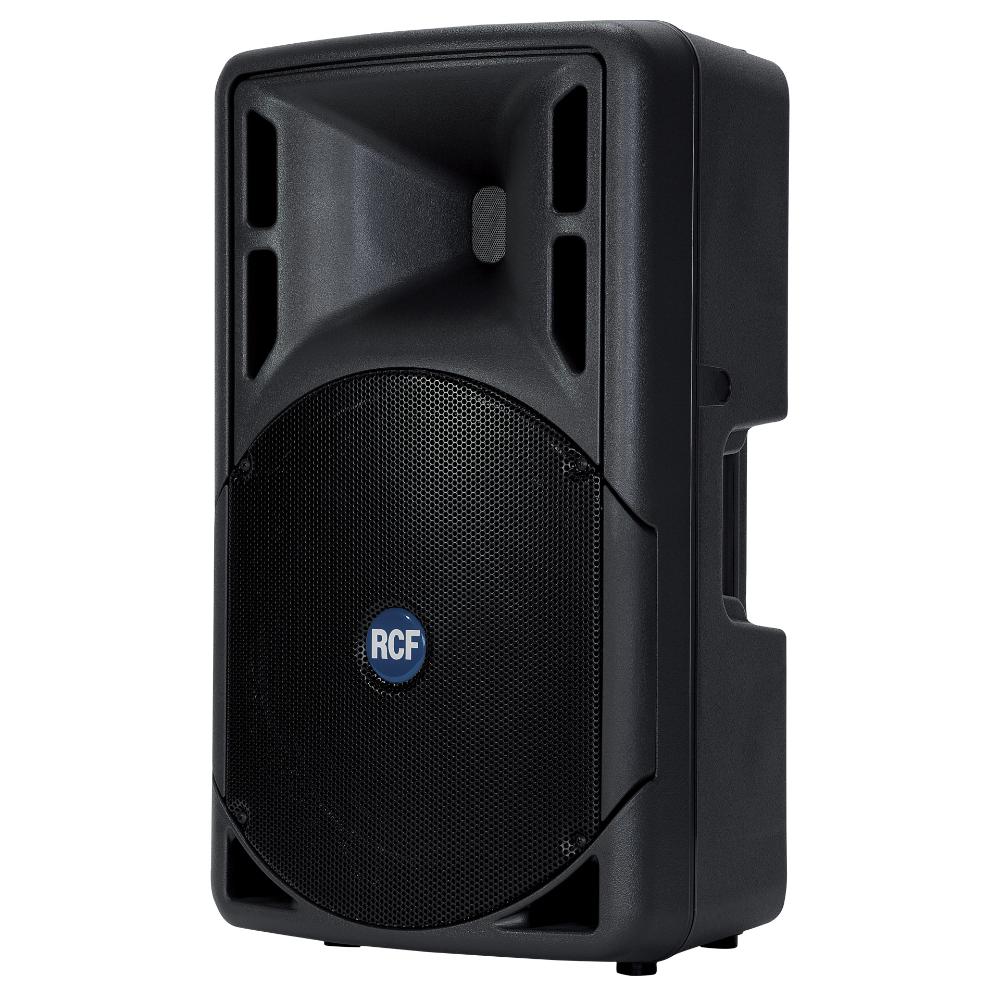

ART 315-A MK III

ART 315-A MK III

ART 315-A MK III
THÔNG TIN SẢN PHẨM:

ART 315-A is the perfect speaker for live sound situations where extra vocal punch and extremely accurate high frequency response is needed.

The 15” woofer delivers a very tight punchy bass and an accurate reproduction of the midrange .
The high frequencies are precise and natural thanks to the compression driver with mylar dome in front of a lowcompression, optimised geometry, radial phase plug.

Thanks to the versatility in both monitoring and playback, it represents the ideal multipurpose solution.

    CHI TIẾT KỸ THUẬT

    FEATURES

    - 800 Watt Peak, 400

    - Watt RMS bi-amplification

    - 129 dB max spl

    - 90 x 60, Wide dispersion constant directivity horn

    - 15" woofer, high power 2.5" voice coil

    - 1" HF driver, mylar dome, 1.5" voice coil



    ACOUSTICAL SPECIFICATIONS

    Frequency Response -3 dB:45 Hz ÷ 20000 Hz

    Max SPL:129 dB

    Horizontal coverage angle:90°

    Vertical coverage angle:60°

    Compression Driver:1", 1.5" v.c.

    Woofer:15", 2.5" v.c.

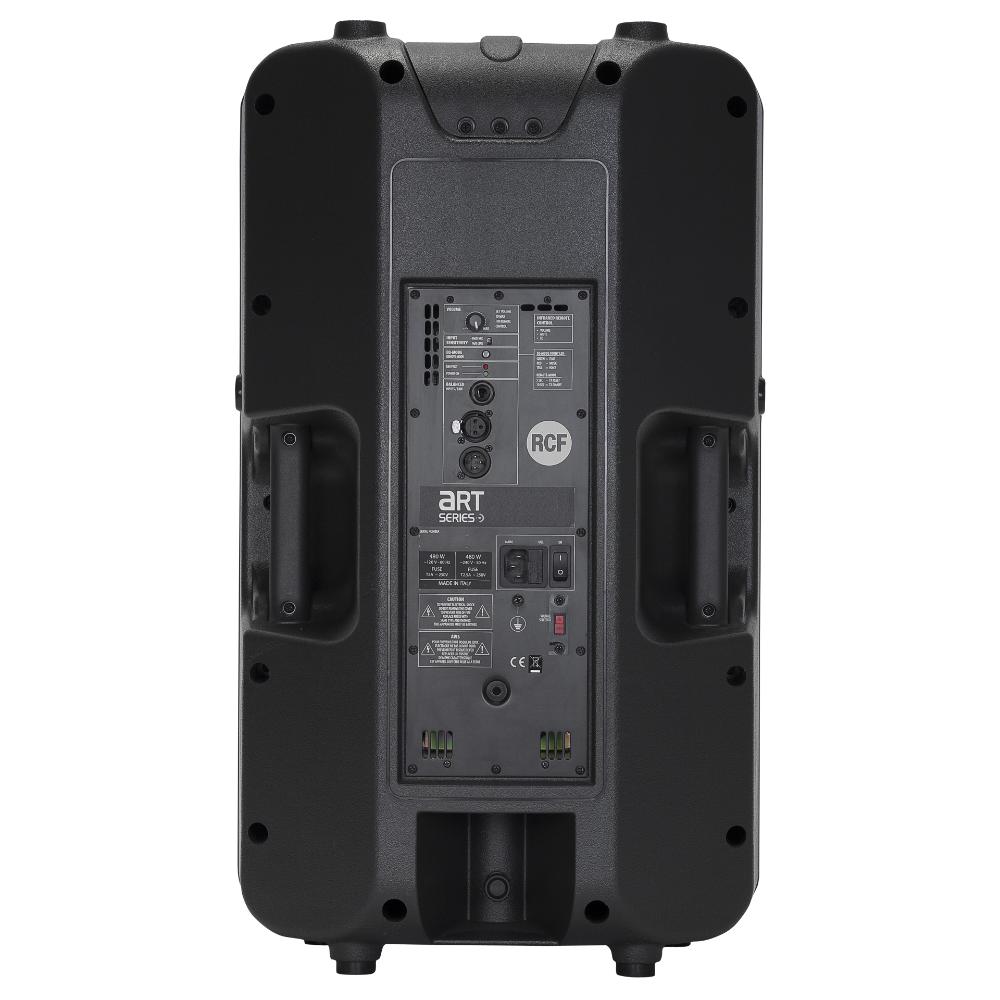

    INPUT/OUTPUT SECTION

    Input signal:bal / unbal

    Input connectors:xlr

    Output connectors:xlr

    Input sensitivity:0 dBu

    Mic. Input Sensitivity:-40



    PROCESSOR SECTION

    Crossover frequencies:1650 Hz

    Protections:DC / short cir.

    Limiter:Fast limiter

    Controls:Volume, EQ settings



    AMPLIFIER SPECIFICATIONS

    Total power:800 W PEAK

      . High frequencies:200 W PEAK

      . Low frequencies:600 W PEAK

    Total power:400 W RMS

      . High frequencies:100 W RMS

      . Low frequencies:300 W RMS

    Cooling:Convection

    Connections:VDE conncector in



    CABINET

    Cabinet Material:Composite PP

    Hardware:4xM10 flying p.

    Handles:2 side, 1 top

    Pole Mount/Cap:Yes

    Colour:Black



    PHYSICAL SPECIFICATIONS

    Height:680 / 26.67 mm/inch

    Width:405 / 15.94 mm/inch

    Depth:345 / 13.58 mm/inch

    Net Weight:19 / 41.8 kg/lbs
