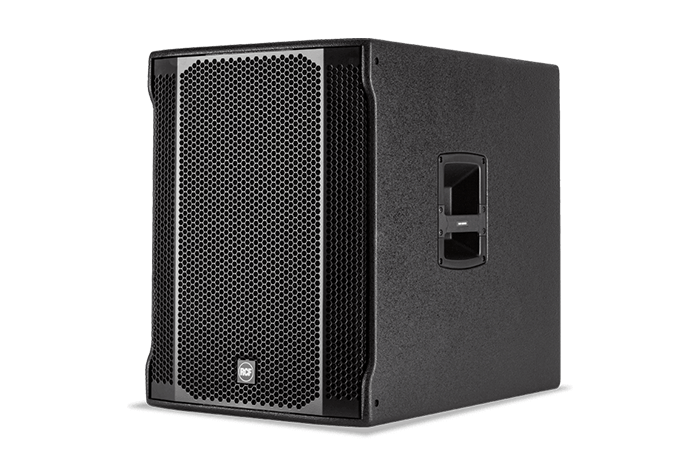

SUB 708-AS II

SUB 708-AS II

SUB 708-AS II

THÔNG TIN SẢN PHẨM:



  • FEATURES
  • 1400 Watt Digital Amplifier
  • 18" Woofer, bass reflex housing
  • Stereo crossover
  • Switchable crossover frequencies
  • Phase-reverse switch
  • Electronic equalization, soft limiter and protection
  • Stereo XLR input, Stereo XLR signal output
  • Thanks to the powerful 18” woofer, with 3.0” voice coil, and the 1400-Watt amplifier, the SUB 708-AS II is the perfect tool to increase the low end performance of a portable PA system, both in terms of output and frequency extension. Thanks to the built-in digital stereo crossover (DSP) with adjustable crossover frequency it can be easily and quickly set up as a satellite speaker system. The SUB 708-AS II perfectly match 12” or 15” satellite speakers. The SUB 708-AS II is the ideal companion subwoofer the RCF ART 3, ART 7 or D-Line Series.


PART NUMBER:

13000457
SUB 708-AS II
220-240V, EAN 8024530012908

13000458
SUB 708-AS II
115V, EAN 8024530012960

    CHI TIẾT KỸ THUẬT

    FEATURES

    1400 Watt Digital Amplifier

    18" Woofer, bass reflex housing

    Stereo crossover

    Switchable crossover frequencies

    Phase-reverse switch

    Electronic equalization, soft limiter and protection

    Stereo XLR input, Stereo XLR signal output



    ACOUSTICAL SPECIFICATIONS

    Frequency Response -3 dB:35 Hz ÷ 120 Hz

    Max SPL:133 dB

    Woofer:18", 3.0" v.c.



    INPUT/OUTPUT SECTION

    Input connectors:Stereo XLR

    Output connectors:Stereo XLR

    Input sensitivity:-2 dBu / + 4 dBu



    PROCESSOR SECTION

    Crossover frequencies:80-110 Hz Hz

    Protections:thermal, rms

    Limiter:soft limiter

    Controls:Volume, EQ, phase, xover



    AMPLIFIER SPECIFICATIONS

    Total power:1400 W PEAK

      . Low frequencies:1400 W PEAK

    Total power:700 W RMS

      . Low frequencies:700 W RMS

    Cooling:convection

    Connections:VDE connector



    CABINET

    Cabinet Material:Baltic birch plywood

    Hardware:Pole mount

    Handles:2 side

    Pole Mount/Cap:yes

    Grille:Steel

    Colour:Black



    PHYSICAL SPECIFICATIONS

    Height:665/26.18 mm/inch

    Width:505/19.88 mm/inch

    Depth:700/27.56 mm/inch

    Net Weight:38.0/83.70 kg/lbs
