SUB 8006-AS

SUB 8006-AS

SUB 8006-AS

THÔNG TIN SẢN PHẨM:



The SUB 8006-AS is the largest and most powerful active sub woofer in the professional series.

Featuring two 18” transducers, with 4” inside/outside voice coils, this cabinet is designed to delivery a serious amount of low frequency.

Powered by a 2500W digital amplifier module, the SUB 8006-AS can perform in the most demanding situations.

    CHI TIẾT KỸ THUẬT

    FEATURES

    5000 Watt Peak power - 2500 Watt RMS

    141 dB max SPL

    30 Hz - 120 Hz frequency response

    2 x 18" Woofer

    DSP controlled Input section with selectable presets

    Delay control

    Integrated mechanics for multiple configuration with HDL 20-A

    Baltic birch tour grade cabinet



    ACOUSTICAL SPECIFICATIONS

    Frequency Response -3 dB:30 Hz ÷ 120 Hz

    Max SPL:141 dB

    Woofer:2 x 18", 4.0" v.c.



    INPUT/OUTPUT SECTION

    Input signal:bal/unbal

    Input connectors:XLR

    Output connectors:XLR

    Input sensitivity:-2 dBu / +4 dBu



    PROCESSOR SECTION

    Crossover frequencies:Selectable 80 Hz - 100 Hz Hz

    Protections:Thermal, RMS

    Limiter:Fast limiter

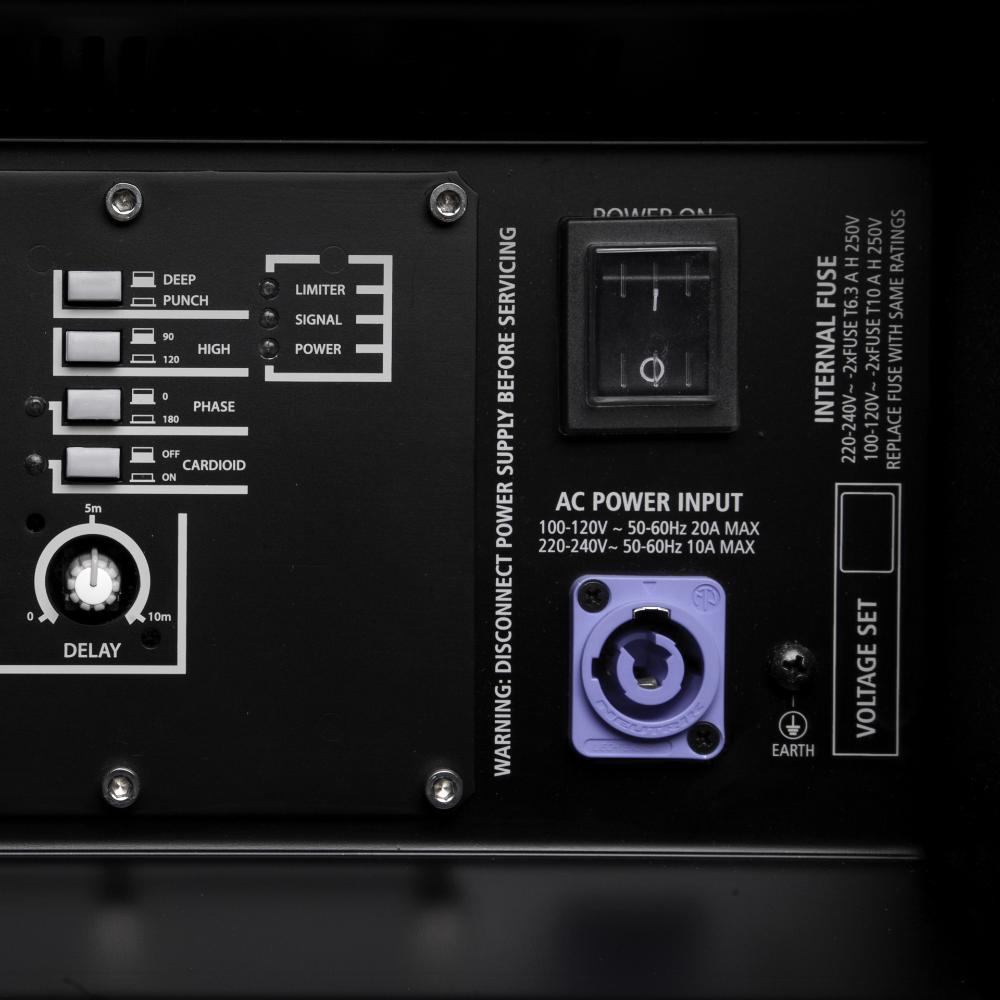

    Controls:Xover, Phase switch, Deep/Punch, Output Delay Settings, Cardioid



    AMPLIFIER SPECIFICATIONS

    Total power:5000 W PEAK

       . Low frequencies:5000 W PEAK

    Total power:2500 W RMS

       . Low frequencies:2500 W RMS

    Cooling:Convection

    Connections:Powercon in/out



    CABINET

    Cabinet Material:Baltic Birch

    Hardware:Mounting points

    Handles:4 side

    Colour:Black



    PHYSICAL SPECIFICATIONS

    Height:709 / 27.91 mm/inch

    Width:1109 / 43.66 mm/inch

    Depth:700 / 27.5 mm/inch

    Net Weight:90 / 198.41 kg/lbs
