NX L24-A

NX L24-A

NX L24-A

THÔNG TIN SẢN PHẨM:

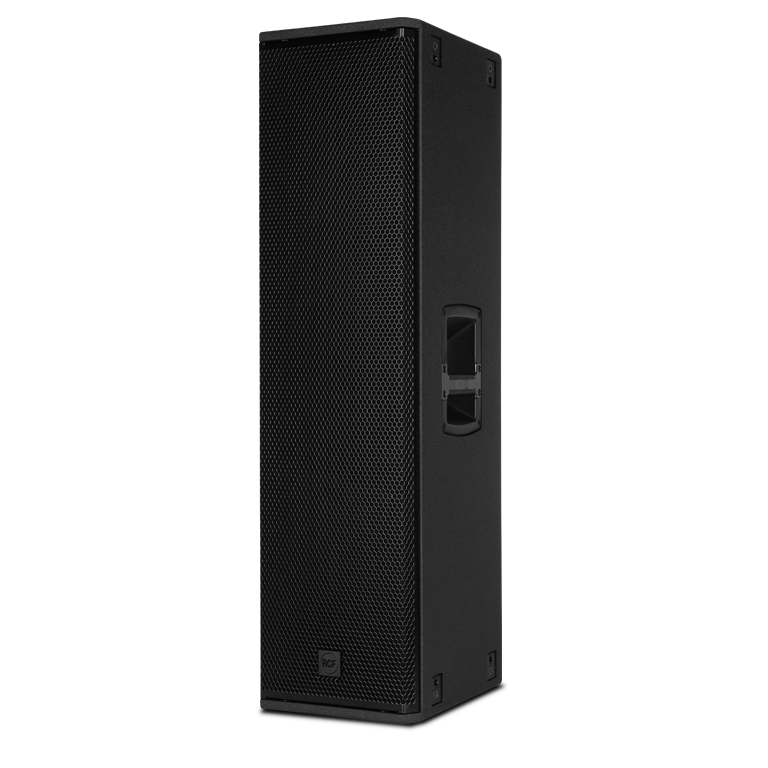

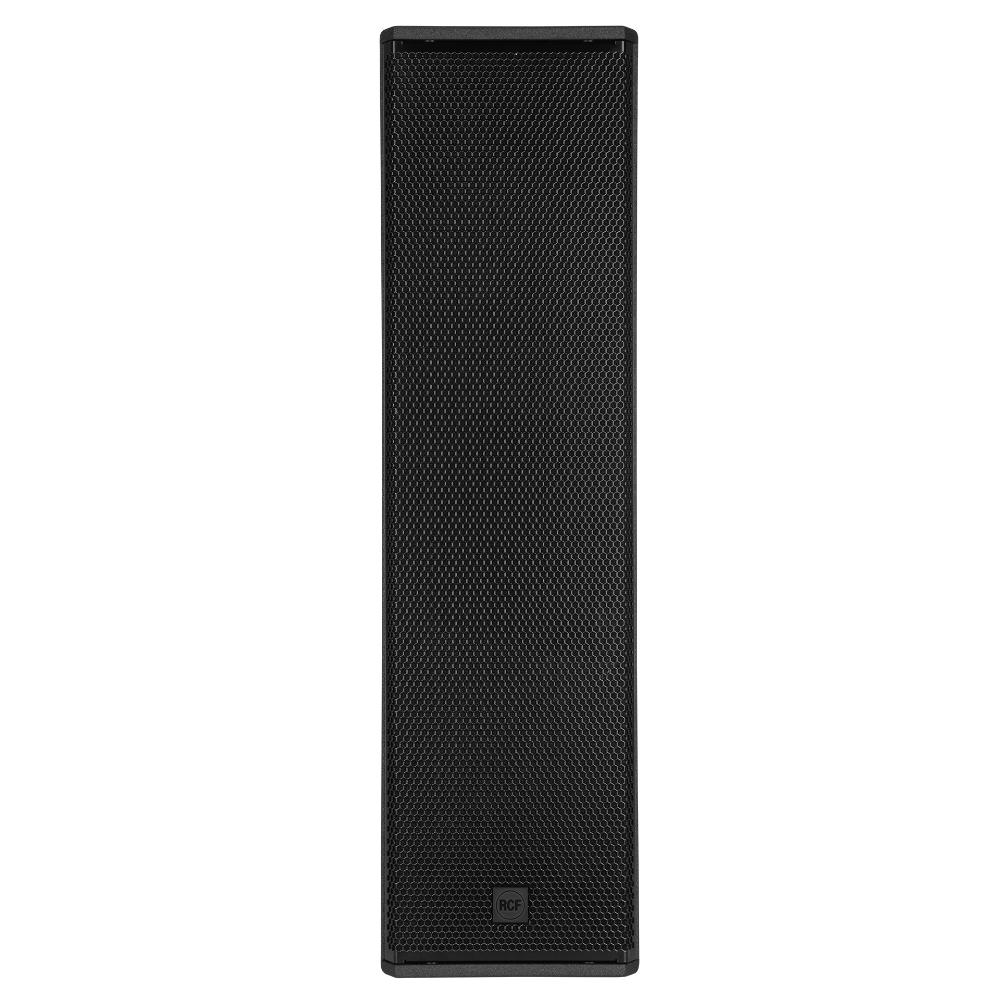

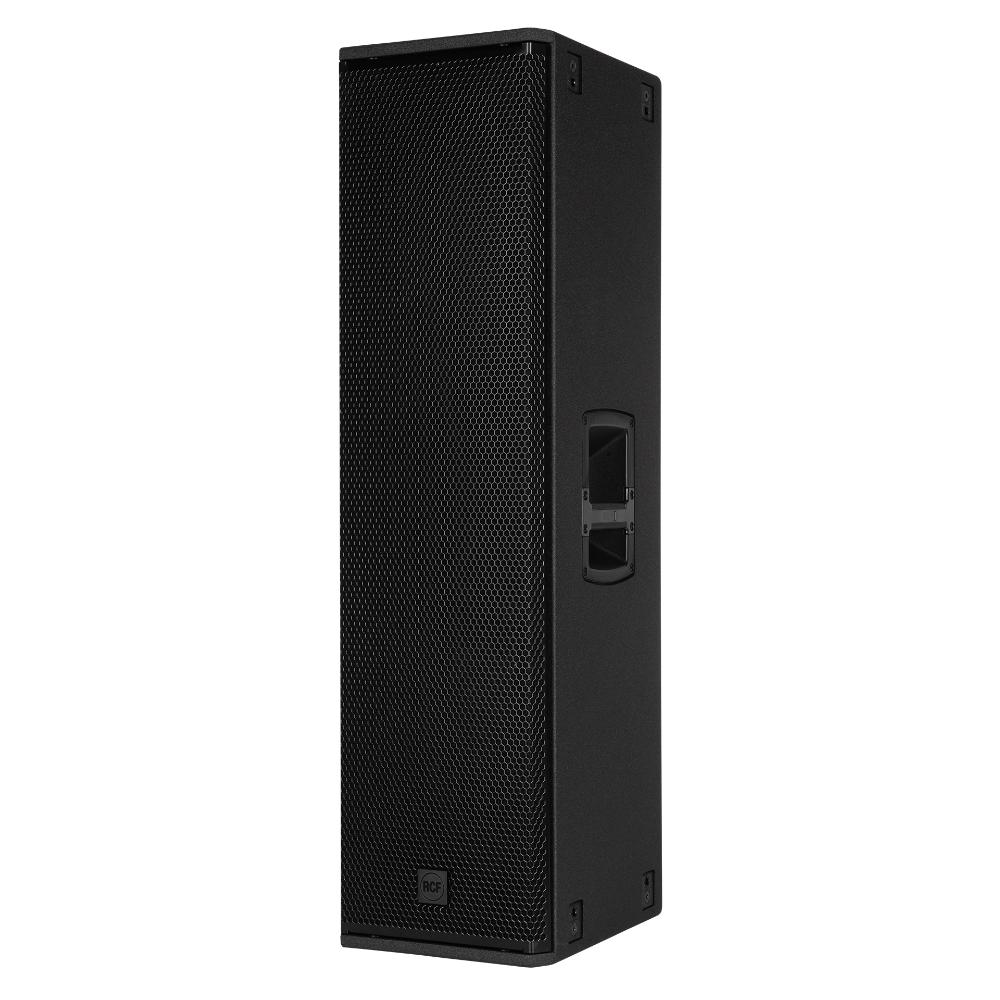

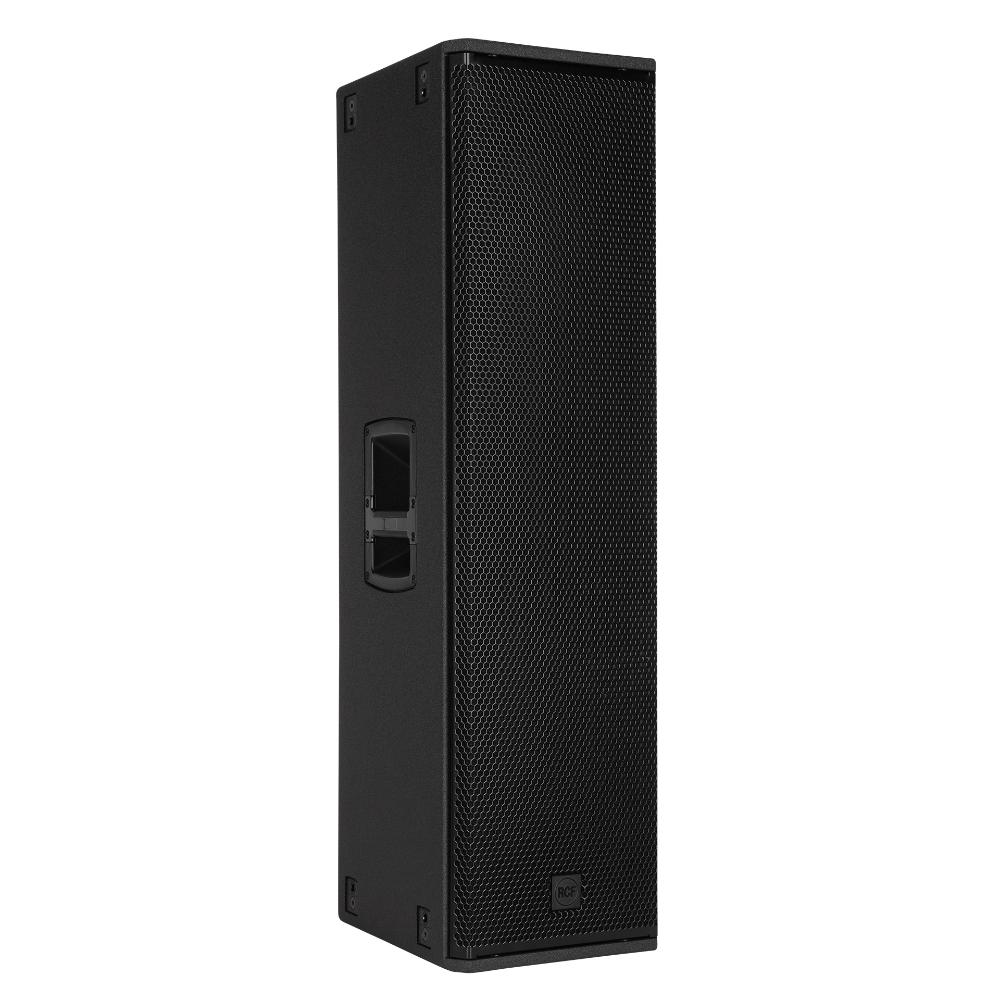

The NXL 24-A is an active column speaker array system composed by 4 x 6” high power woofers and a 2.5” voice coil compression driver loaded from a waveguide on a 100° x 30° constant directivity horn.

The amplifier delivers 1400 Watt and is controlled by a DSP that takes care of crossover, equalisation, phase alignment, soft limiting and speaker protections. Equalisations are available to operate with a single column or in pairs.

    CHI TIẾT KỸ THUẬT

    THE NX L24-A TWO-WAY ARRAY

    The advanced technology of RCF's powered line arrays has been delighting audiences and users for many years. Paired with state-of-the-art DSP-driven controllers and digital power amps, these rigs raise the bar for reliability and performance.

    There are many situations where users wish they had a sound system that combines the benefits of line array technology - higher levels of direct rather than reflected sound, greater range and more uniform distribution - with the handling ease of two-way cabinets.



    MAXIMUM EFFICIENCY

    The NX L24-A is a true active and high power ready to use two-way array system equipped with a high efficiency digital amplifier that delivers superior SPL reducing energy requirement. The integrated processing and the cabling reduction will make the set-up faster and easier and, thanks to its compact size, the space requirement is reduced to the minimum.



    FEATURES

    1400 Watt

    131 dB max SPL

    65 Hz 20 kHz frequency response

    4 x 6" Woofers

    2.5" voice coil RCF Precision C. Driver on waveguide

    100° x 30° slightly tilted pattern control

    DSP controlled Input section with single or dual eq. preset

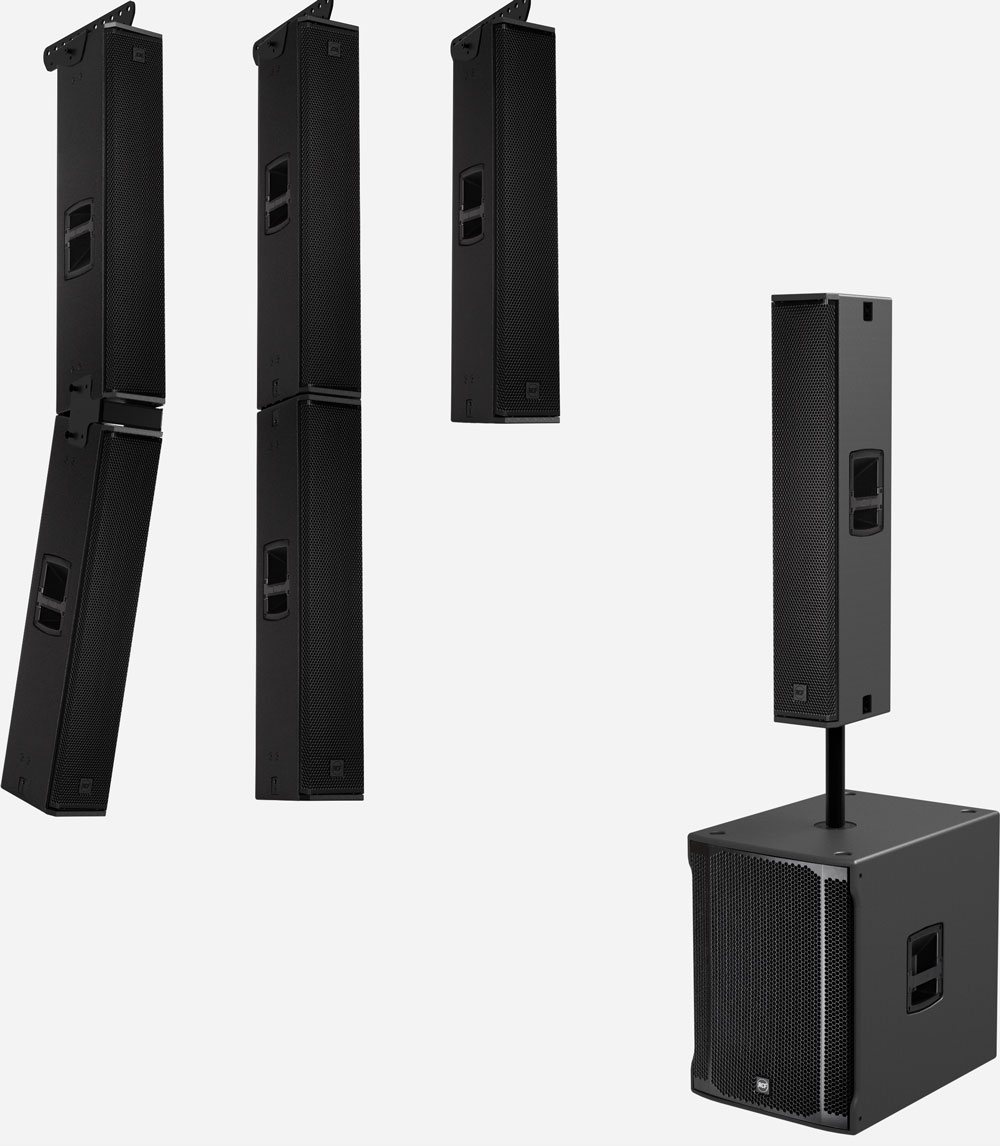

    Pole mountable, Stackable, Flyable

    Baltic Birch Plywood enclosure with internal structural metal bracings



    ACOUSTICAL SPECIFICATIONS

    Frequency Response -3 dB:65 Hz ÷ 20000 Hz

    Max SPL:131 dB

    Horizontal coverage angle:100°

    Vertical coverage angle:30°

    Compression Driver:1.4", 2.5" v.c.

    Woofer:4 x 6", 1.5" v.c.

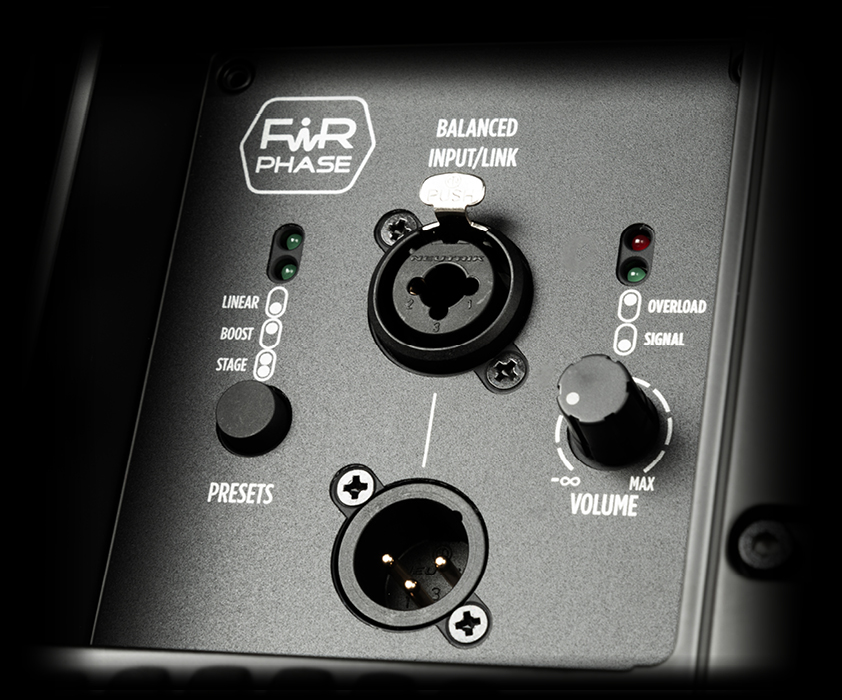

    INPUT/OUTPUT SECTION

    Input connectors:Jack- XLR male

    Output connectors:XLR female

    Input sensitivity:-2 dBu / + 4 dBu



    PROCESSOR SECTION

    Crossover frequencies:800 Hz

    Protections:thermal, rms

    Limiter:soft limiter

    Controls:Volume, EQ Shape, Mic/ Line



    AMPLIFIER SPECIFICATIONS

    Total power:1400 W PEAK

       . High frequencies:400 W PEAK

       . Low frequencies:1000 W PEAK

    Total power:700 W RMS

       . High frequencies:200 W RMS

       . Low frequencies:500 W RMS

    Cooling:convection

    Connections:Powercon in-out



    CABINET

    Cabinet Material:baltic birch plywood

    Hardware:4 x M8, 4 x quick lock

    Handles:2 side

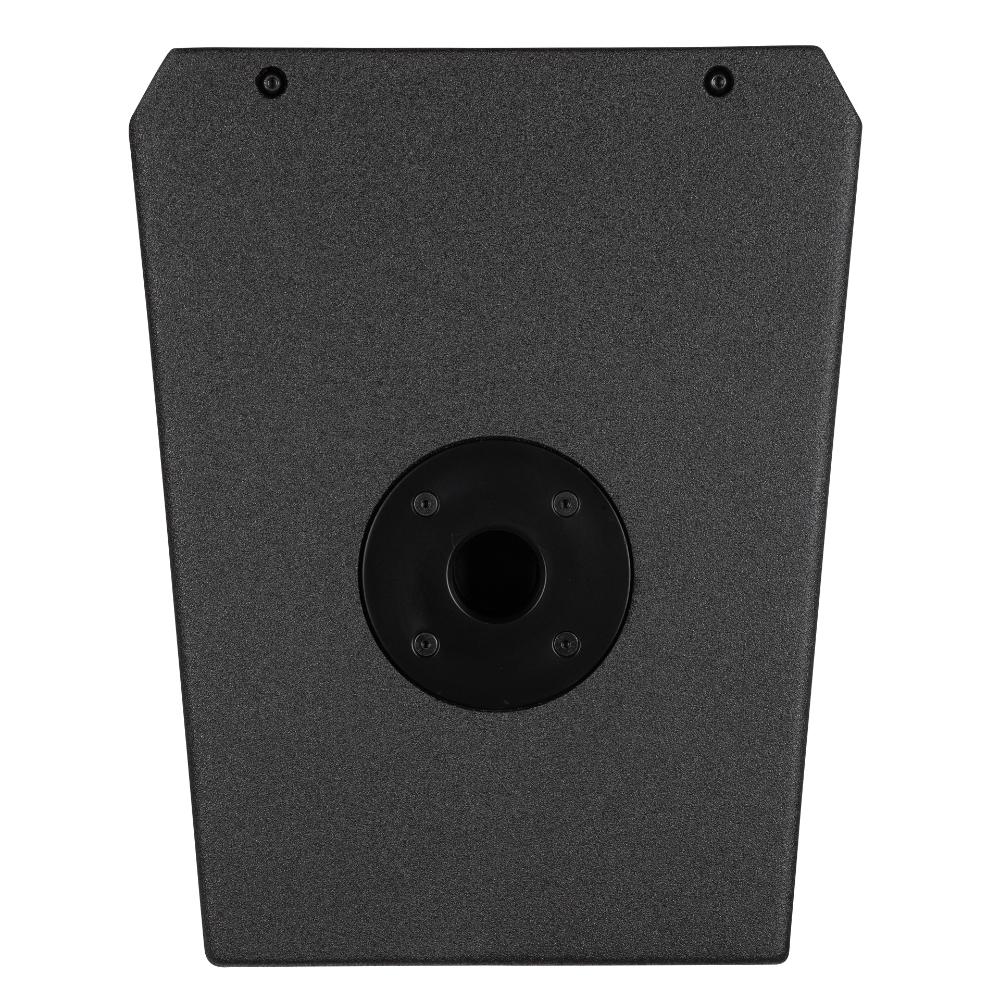

    Pole Mount/Cap:yes

    Colour:black



    PHYSICAL SPECIFICATIONS

    Height:1056/41.58 mm/inch

    Width:201/7.90 mm/inch

    Depth:274/10.79 mm/inch

    Net Weight:26.4/58.8 kg/lbs
