FEATURES
1400 W Peak, 700 W RMS digital amplifier
129 dB max spl
90 x 60, Wide dispersion constant directivity horn
12" woofer, high power 3" voice coil
1" HF driver, Mylar dome, 1.75" voice coil
DSP Processing
ACOUSTICAL SPECIFICATIONS
Frequency Response -3 dB:50 Hz ÷ 20000 Hz
Max SPL:129 dB
Horizontal coverage angle:90°
Vertical coverage angle:60°
Compression Driver:1", 1.75" v.c.
Woofer:12", 3" v.c.

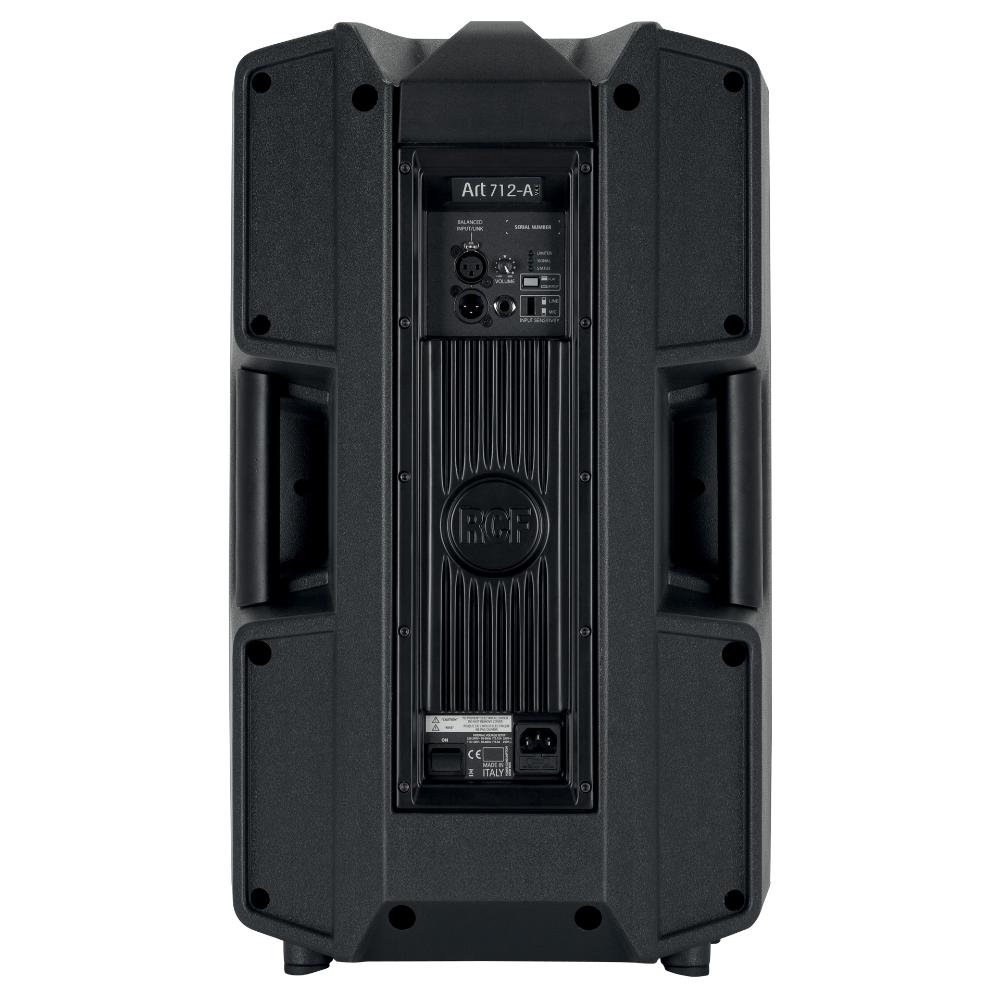

INPUT/OUTPUT SECTION
Input signal:bal / unbal
Input connectors:XLR, Jack
Output connectors:XLR
Input sensitivity:-2 dBu / +4 dBu
FEATURES
1400 W Peak, 700 W RMS digital amplifier
129 dB max spl
90 x 60, Wide dispersion constant directivity horn
12" woofer, high power 3" voice coil
1" HF driver, Mylar dome, 1.75" voice coil
DSP Processing
ACOUSTICAL SPECIFICATIONS
Frequency Response -3 dB:50 Hz ÷ 20000 Hz
Max SPL:129 dB
Horizontal coverage angle:90°
Vertical coverage angle:60°
Compression Driver:1", 1.75" v.c.
Woofer:12", 3" v.c.
INPUT/OUTPUT SECTION
Input signal:bal / unbal
Input connectors:XLR, Jack
Output connectors:XLR
Input sensitivity:-2 dBu / +4 dBu
PROCESSOR SECTION
Crossover frequencies:1700 Hz
Protections:Thermal, rms
Limiter:Soft limiter
Controls:Volume, EQ shape
AMPLIFIER SPECIFICATIONS
Total power:1400 W PEAK
. High frequencies:400 W PEAK
. Low frequencies:1000 W PEAK
Total power:700 W RMS
. High frequencies:200 W RMS
. Low frequencies:500 W RMS
Cooling:Convection / forced
Connections:VDE connector in
CABINET
Cabinet Material:Composite PP
Hardware:2xM10 flying p .
Handles:2 side, 1 top
Pole Mount/Cap:Yes
Colour:Black
PHYSICAL SPECIFICATIONS
Height:637 / 25.0 mm/inch
Width:384 / 15.1 mm/inch
Depth:363 / 14.2 mm/inch
Crossover frequencies:1700 Hz
Protections:Thermal, rms
Limiter:Soft limiter
Controls:Volume, EQ shape
AMPLIFIER SPECIFICATIONS
Total power:1400 W PEAK
. High frequencies:400 W PEAK
. Low frequencies:1000 W PEAK
Total power:700 W RMS
. High frequencies:200 W RMS
. Low frequencies:500 W RMS
Cooling:Convection / forced
Connections:VDE connector in
CABINET
Cabinet Material:Composite PP
Hardware:2xM10 flying p .
Handles:2 side, 1 top
Pole Mount/Cap:Yes
Colour:Black
PHYSICAL SPECIFICATIONS
Height:637 / 25.0 mm/inch
Width:384 / 15.1 mm/inch
Depth:363 / 14.2 mm/inch
