EVOX 5

EVOX 5

EVOX 5

THÔNG TIN SẢN PHẨM:

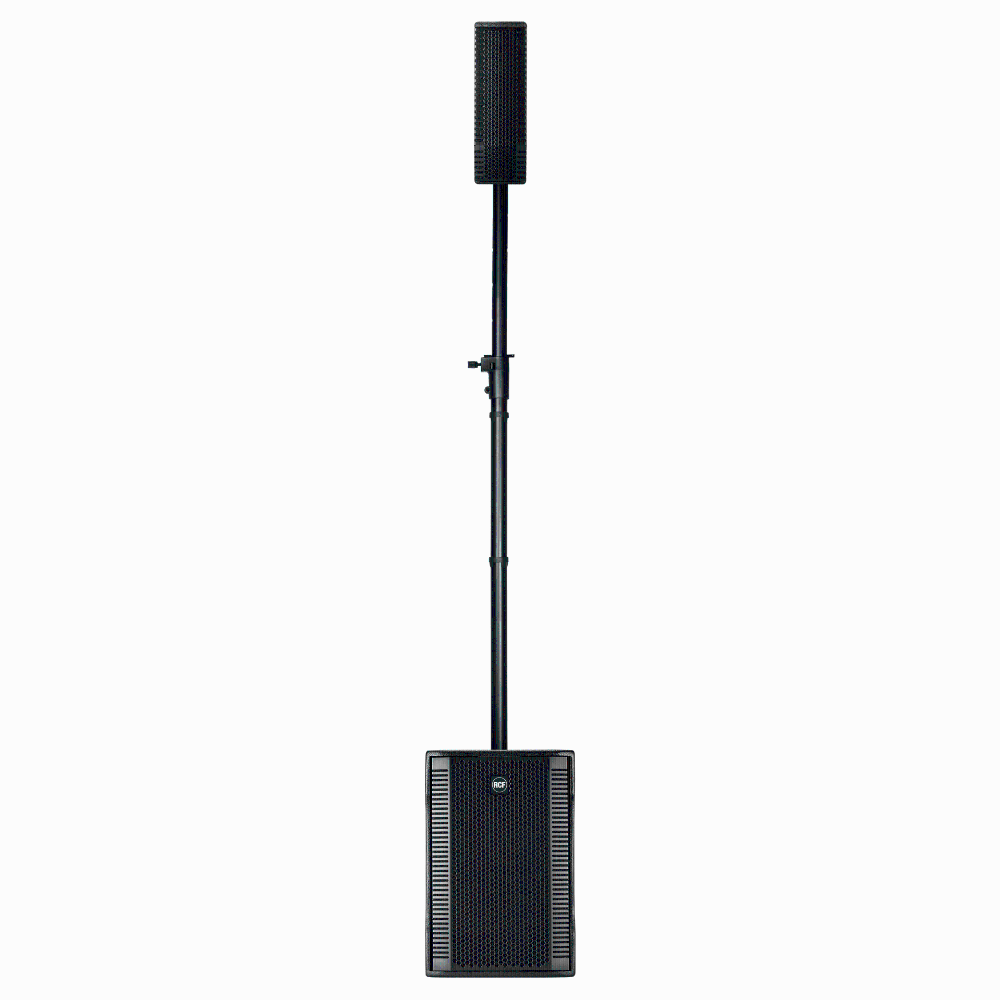

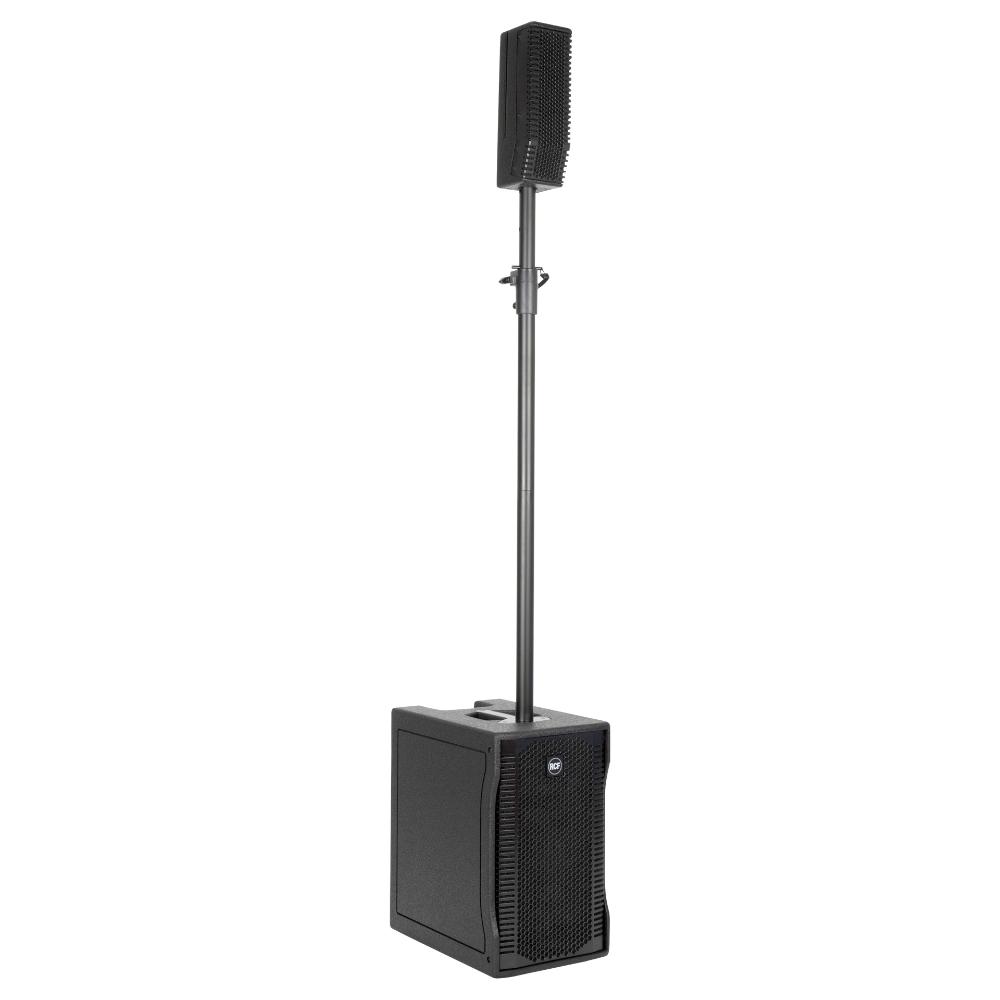

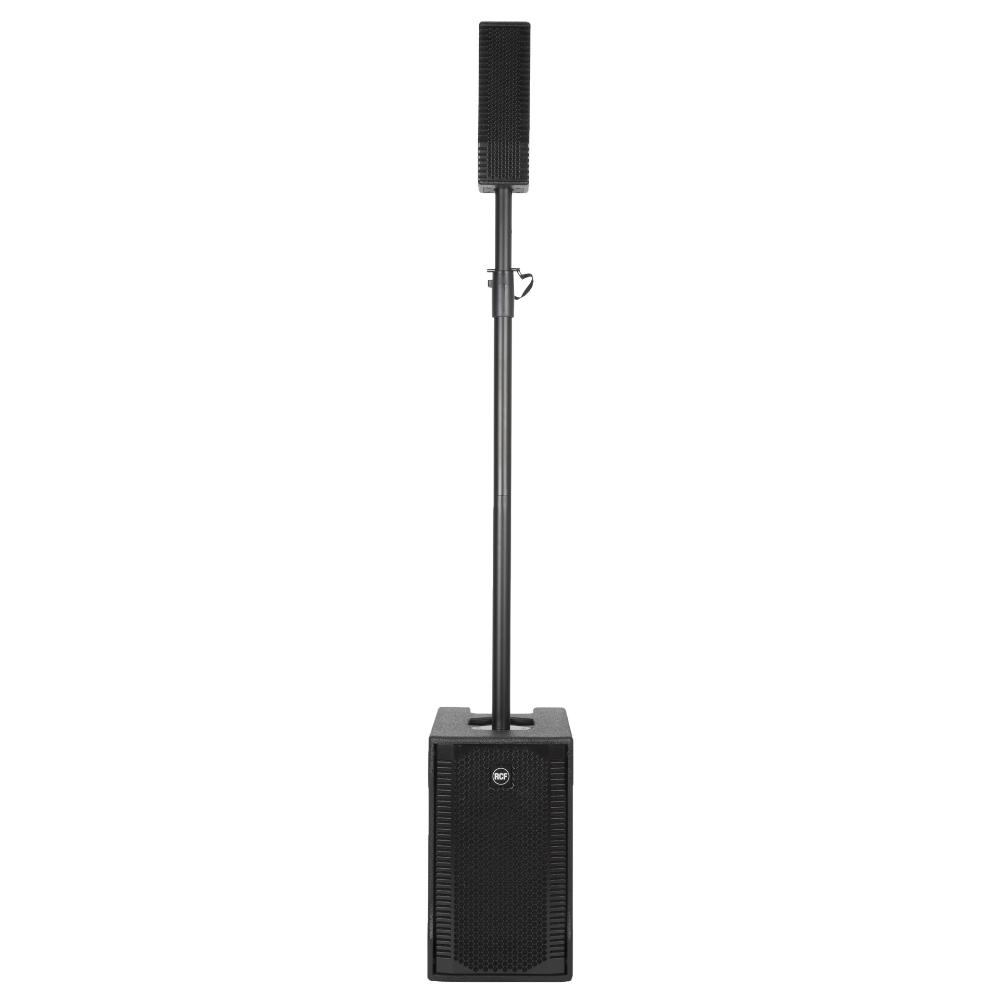

Evox 5 is a portable compact size sound reinforcement system. Evox 5 combines the quality and reliability of RCF transducers with a very high amplification power. The system features five 2.0” full range transducers in the line source satellite and a deep sounding 10” woofer in a bass reflex enclosure. The system is designed to be the perfect portable solution for live music and DJs. The unique vocal attitude and portability make Evox 5 the perfect tool for presentations, corporate events and congresses.

    CHI TIẾT KỸ THUẬT

    EVOX TWO-WAY ARRAYS

    EVOX array design features constant horizontal directivity coverage of 120°, offering a perfect listening experience to the audience. The vertical array design is progressively shaped to guarantee a correct listening from the first row and to avoid a high frequency beaming typical of straight array



    LIVE SOUND

    Extensive testing with instruments and voices during the design process as well as power and reliability testing make the EVOX system the perfect workmates for solo musicians or bands.



    DJS

    Extremely deep response, precise low frequency control and incredible audio quality, easy to transport and quick to set up. EVOX is without any doubt a smart choice for DJs.



    CONFERENCES

    Extraordinary clarity and dynamic of vocal reproduction, both at low and very high levels. EVOX is a great tool for conferences and speeches.



    FEATURES

    800 Watt

    125 dB max SPL

    45 Hz 20 kHz frequency response

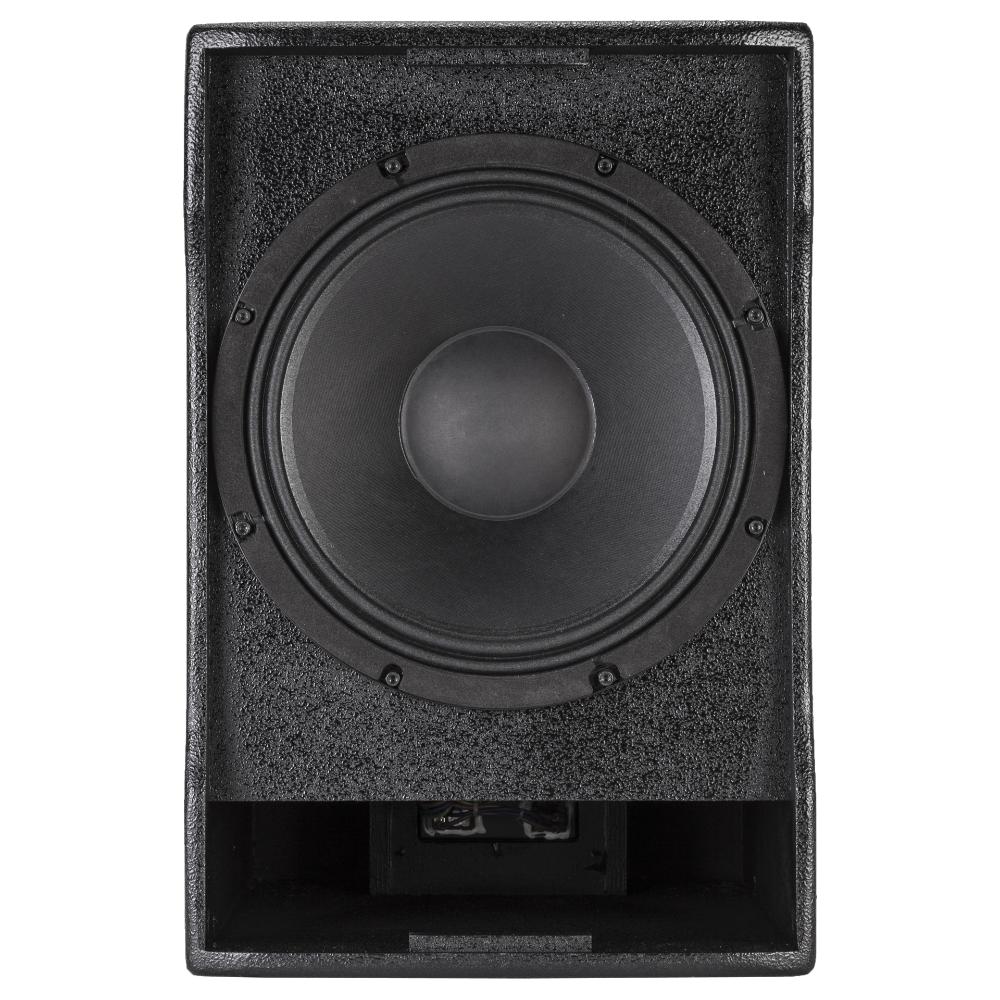

    10" Woofer, 2.0" v.c.

    5 x 2" Ultra compact fullrange, 1.0 v.c.

    120° x 30° slightly tilted pattern control

    Innovative DSP processing

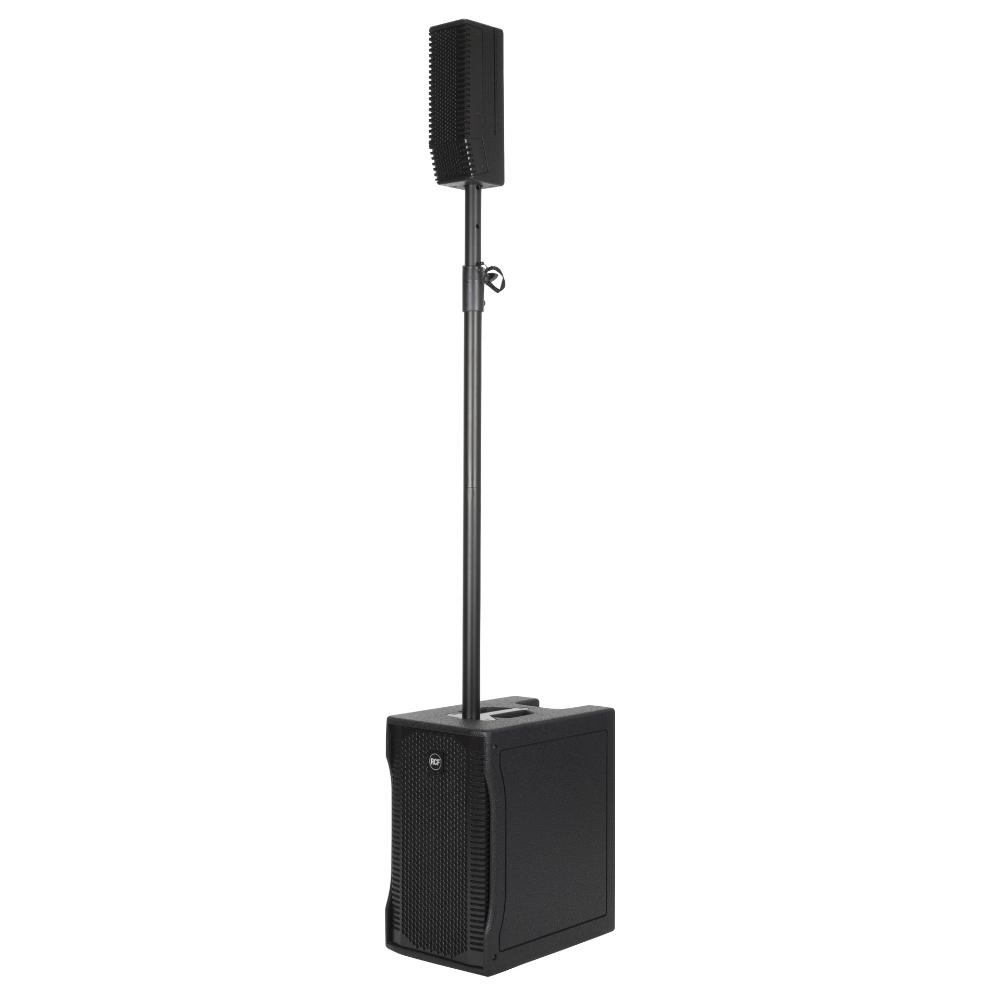

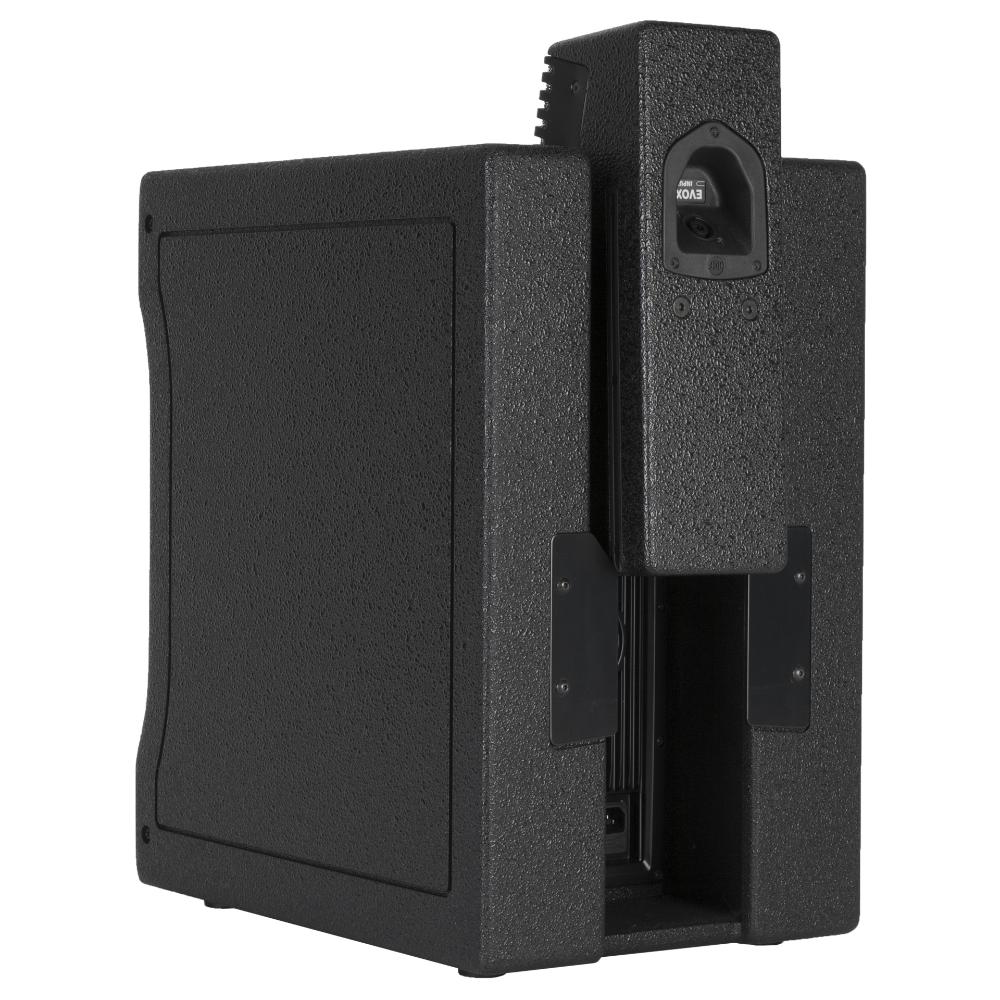

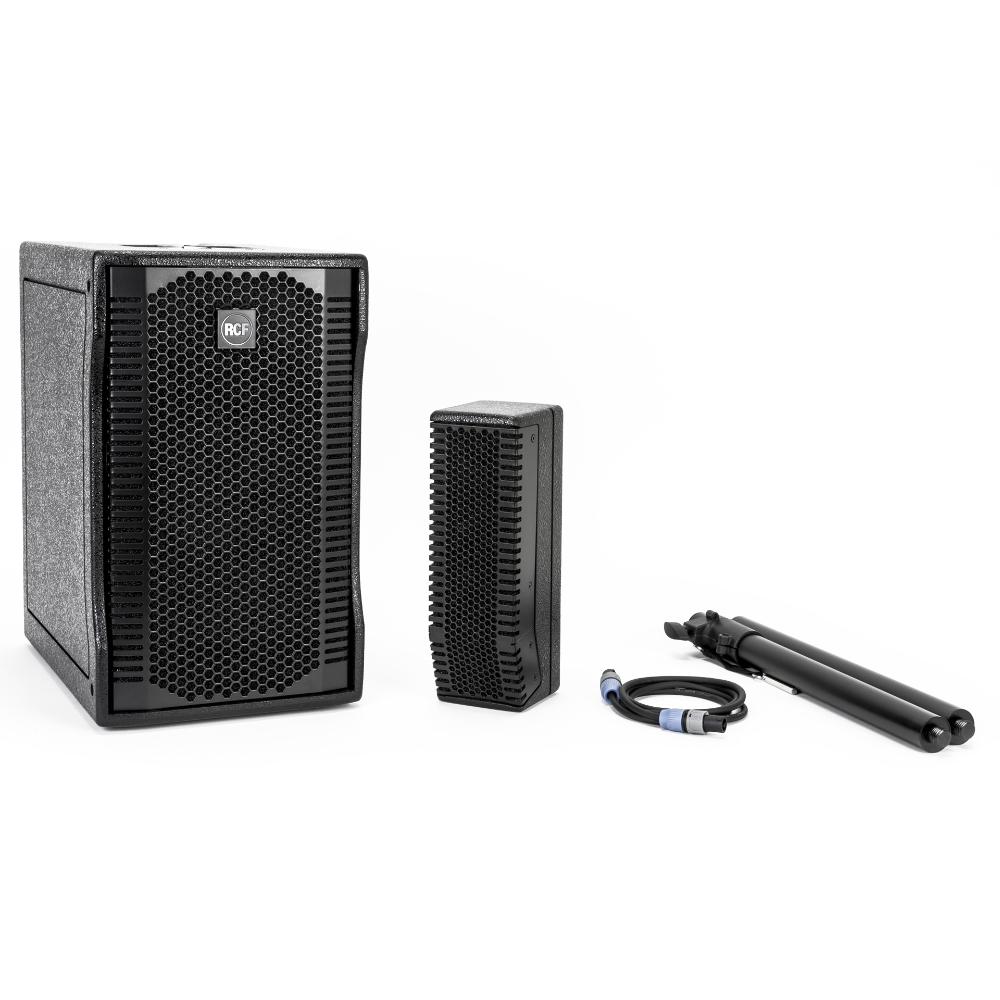

    Pole mountable, easy set-up and transportation



    ACOUSTICAL SPECIFICATIONS

    Frequency Response -3 dB:45 Hz ÷ 20 Hz

    Max SPL:125 dB

    Horizontal coverage angle:120°

    Vertical coverage angle:30°

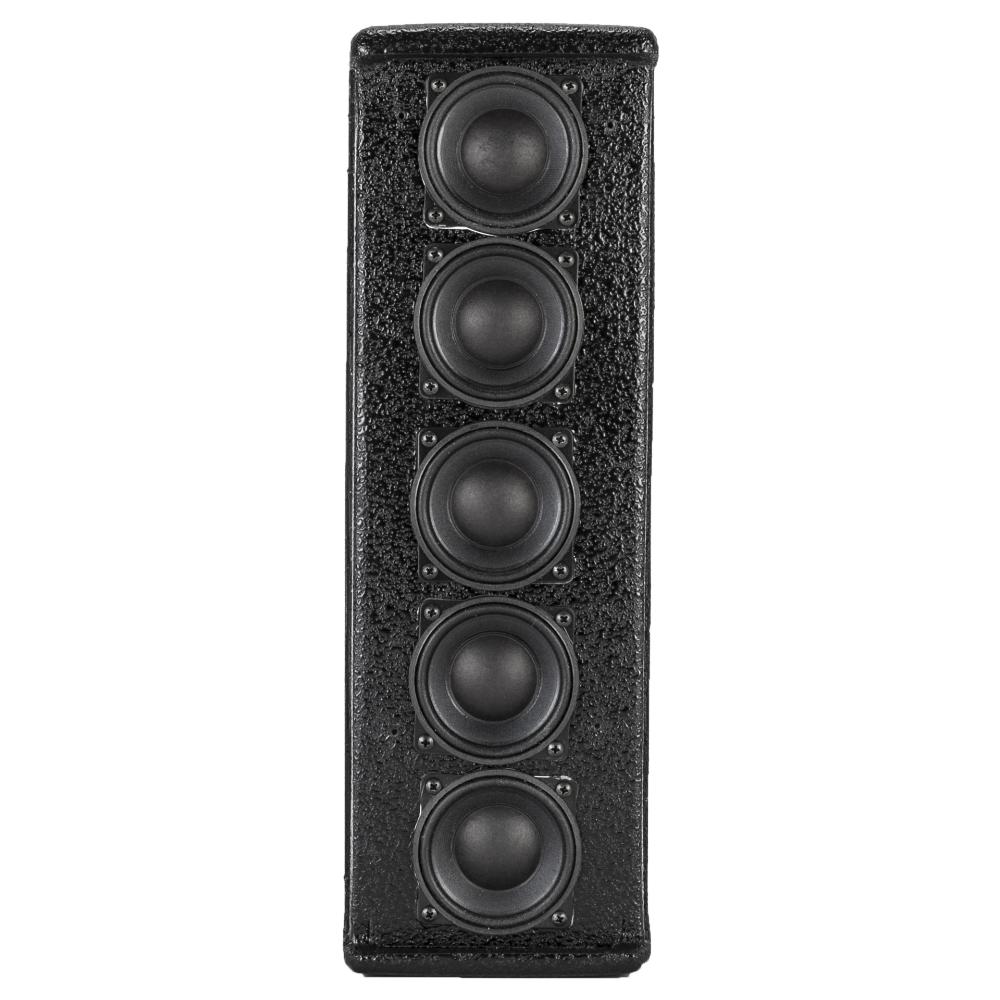

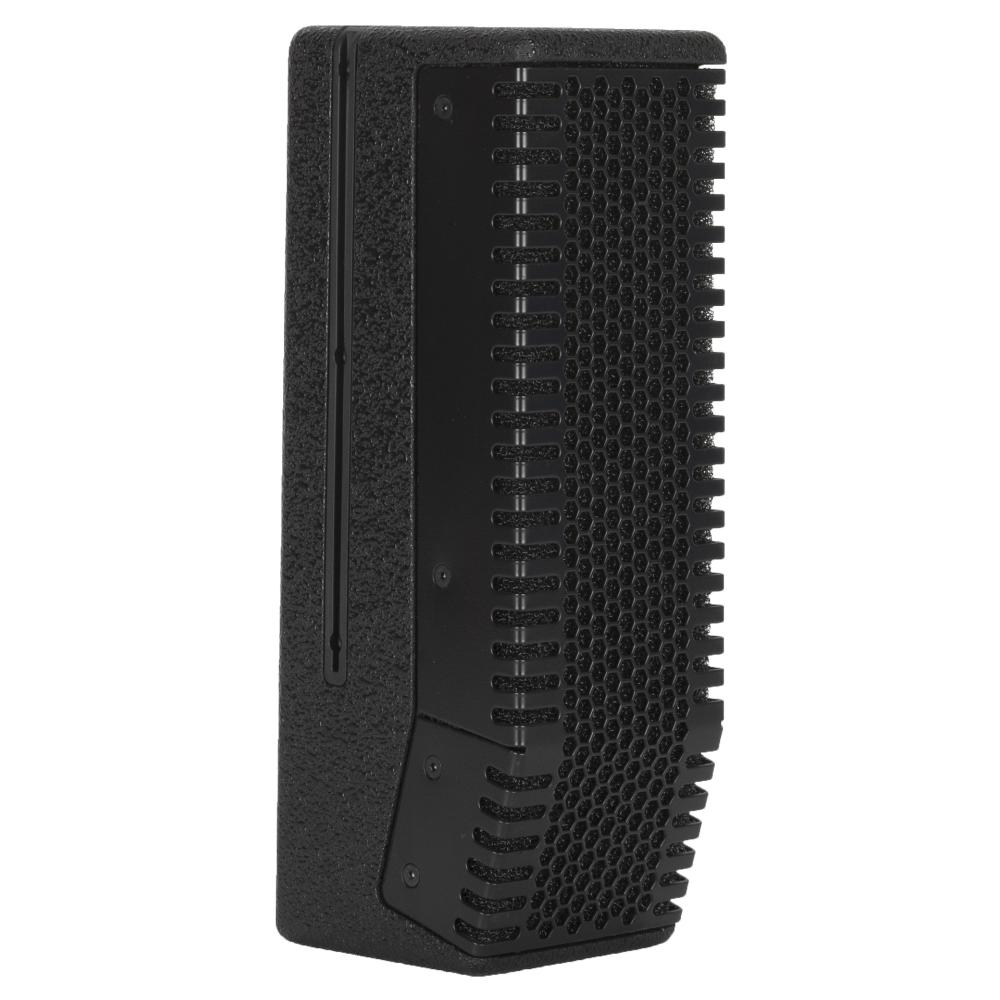

    Fullrange:5 x 2", 1.0" v.c.

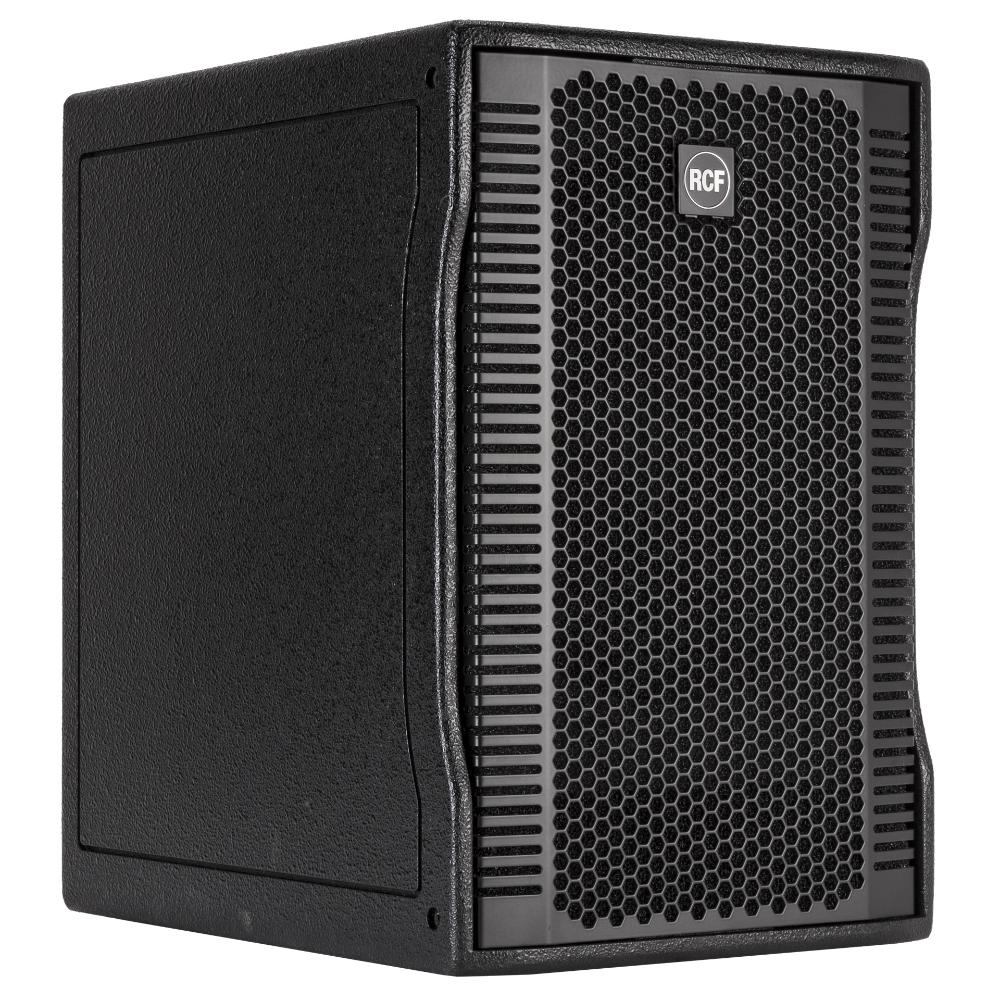

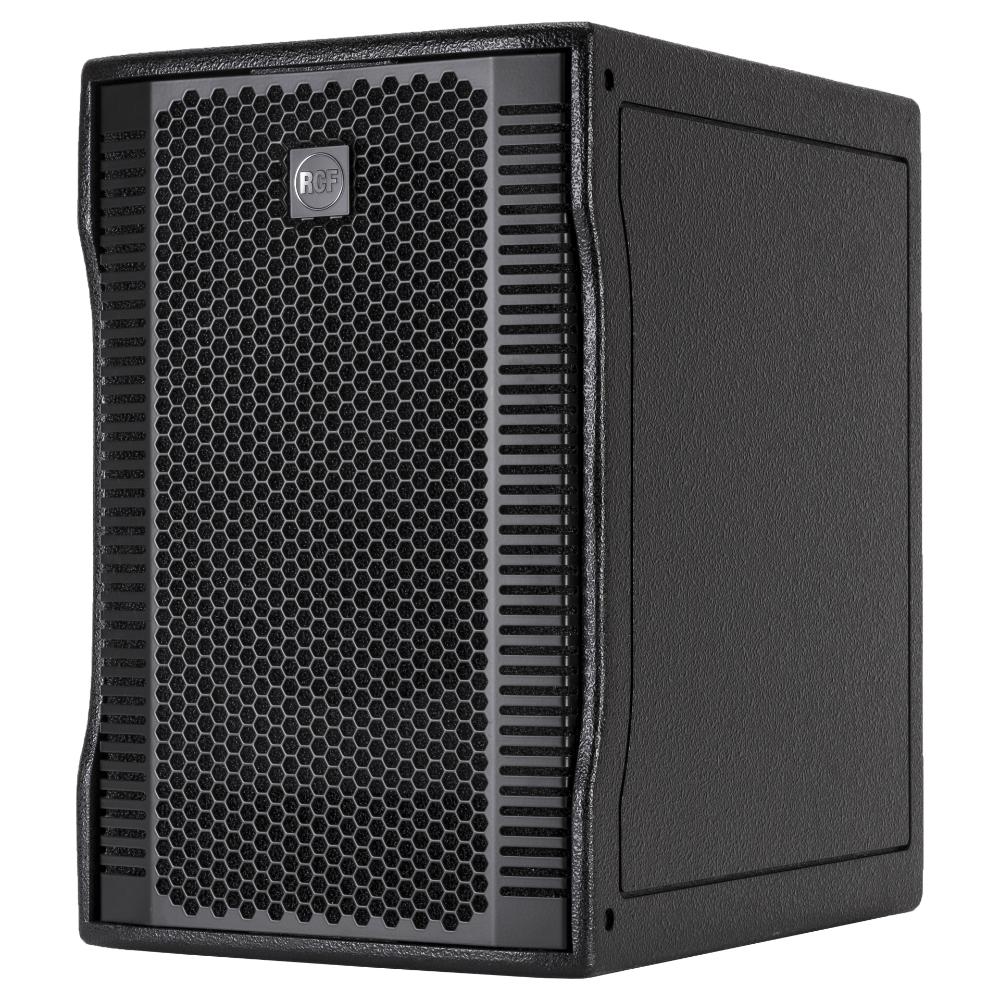

    Woofer:10", 2.0" v.c.

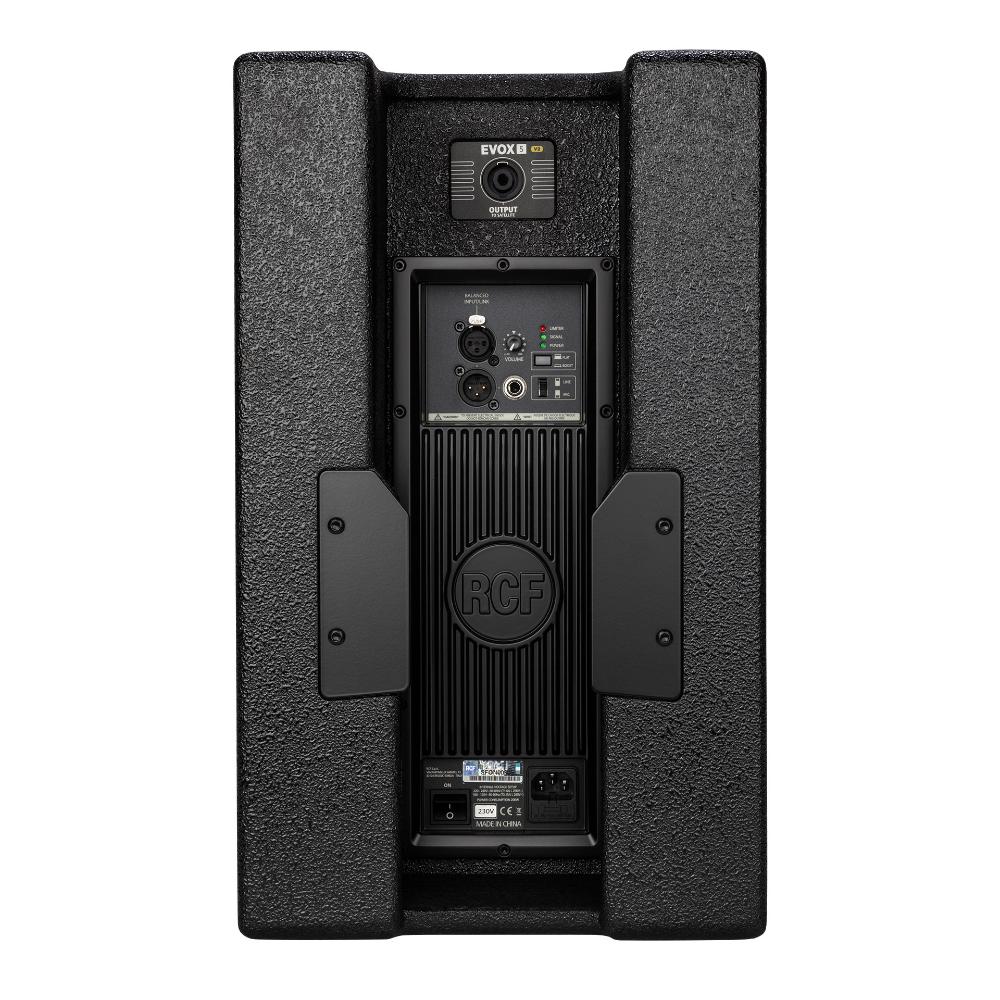

    INPUT/OUTPUT SECTION

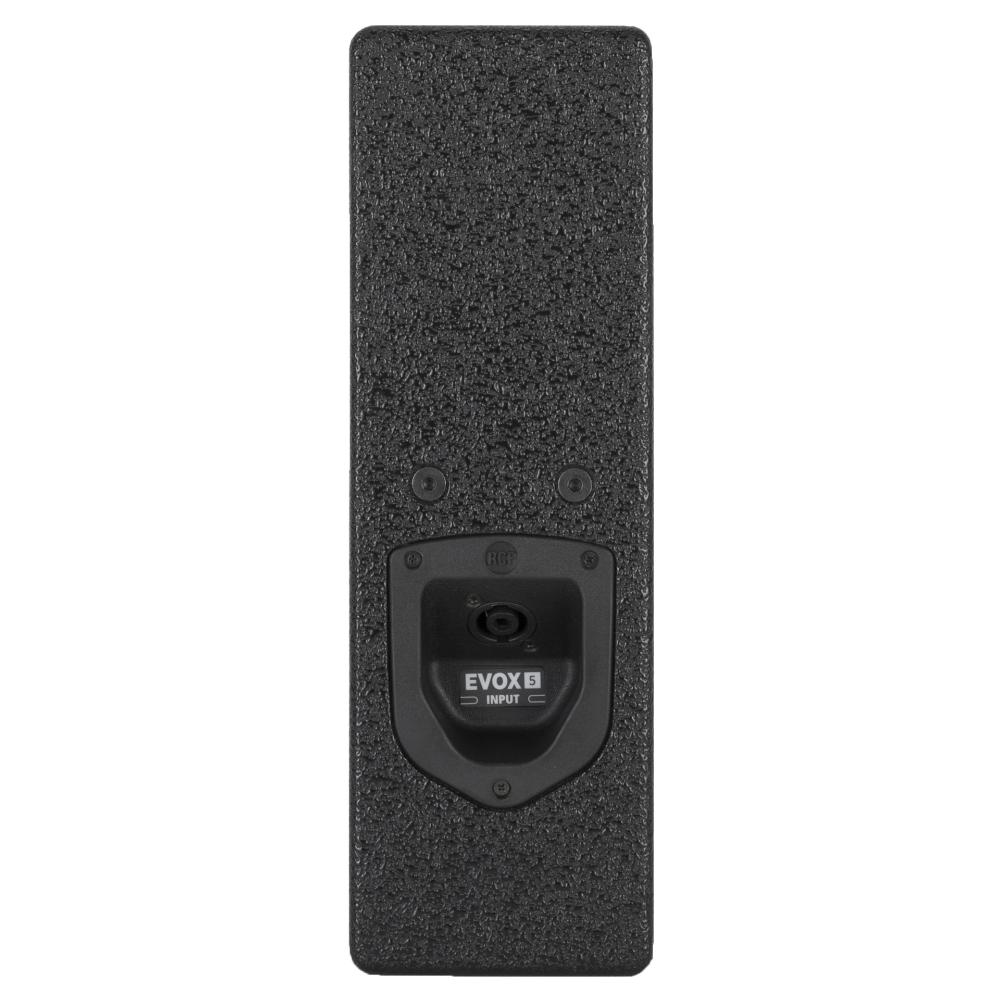

    Input connectors:Jack-XLR male

    Output connectors:XLR female

    Input sensitivity:-2 dBu / + 4 dBu



    PROCESSOR SECTION

    Crossover frequencies:220 Hz

    Protections:thermal, rms

    Limiter:Soft limiter

    Controls:Volume, EQ, phase, xover



    AMPLIFIER SPECIFICATIONS

    Total power:800 W PEAK

     . High frequencies:200 W PEAK

     . Low frequencies:600 W PEAK

    Total power:400 W RMS

     . High frequencies:100 W RMS

     . Low frequencies:300 W RMS

    Cooling:Convection

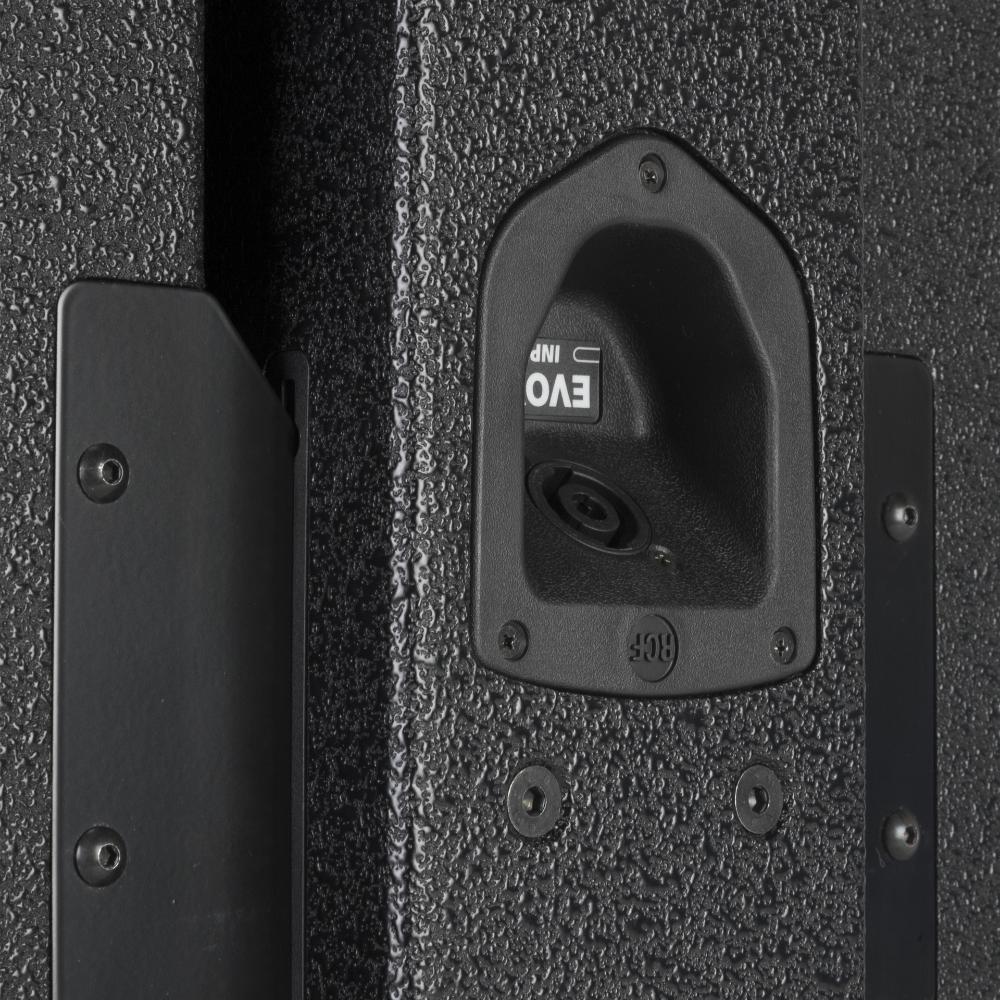

    Connections:VDE connector



    CABINET

    Cabinet Material:Baltic birch plywood

    Hardware:2 x M6

    Handles:1 top

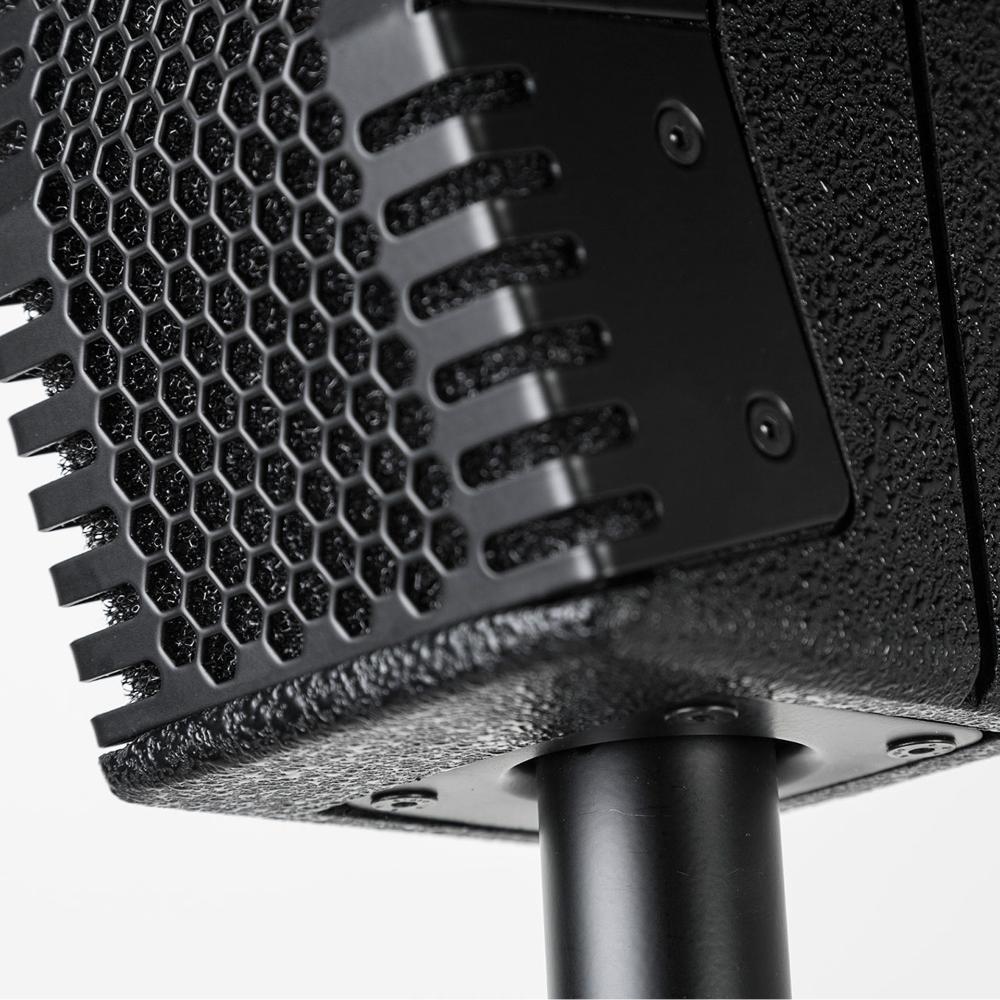

    Pole Mount/Cap:Yes

    Colour:black
