TTL 33A II

TTL 33A II

TTL 33A II

THÔNG TIN SẢN PHẨM:

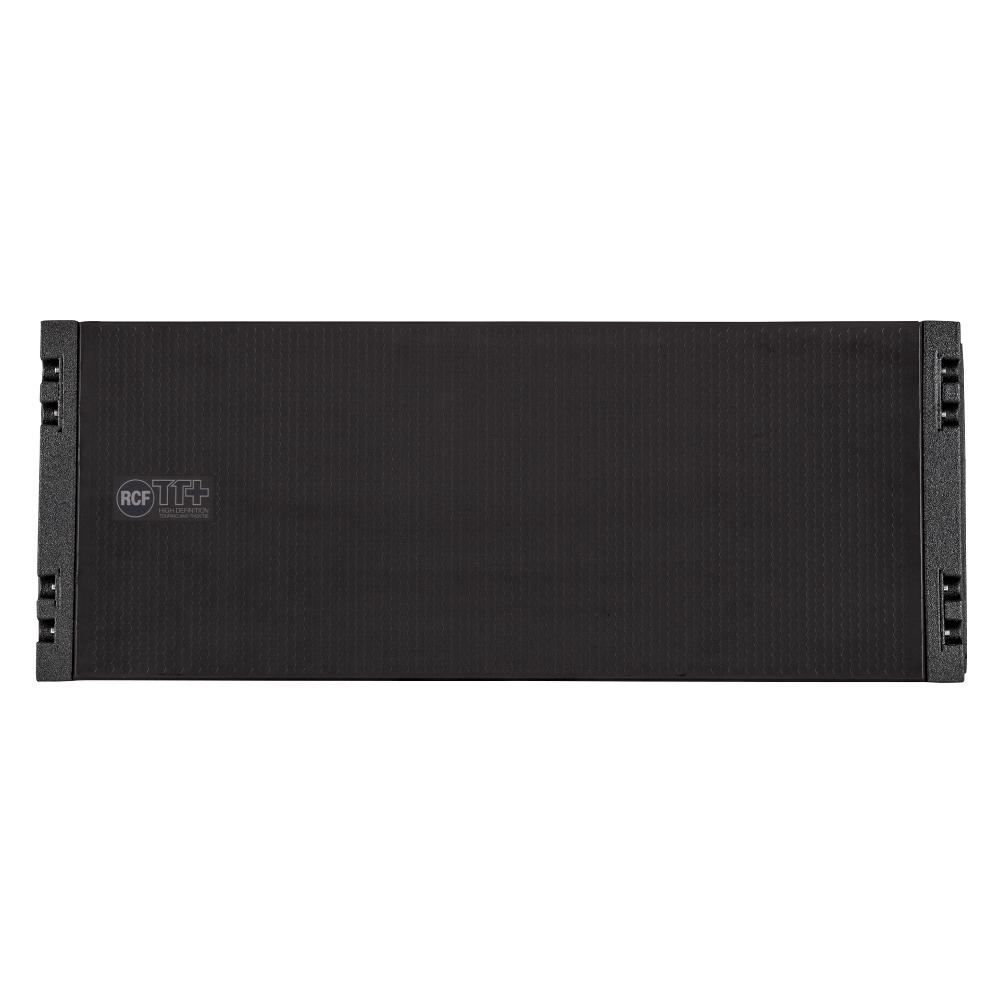

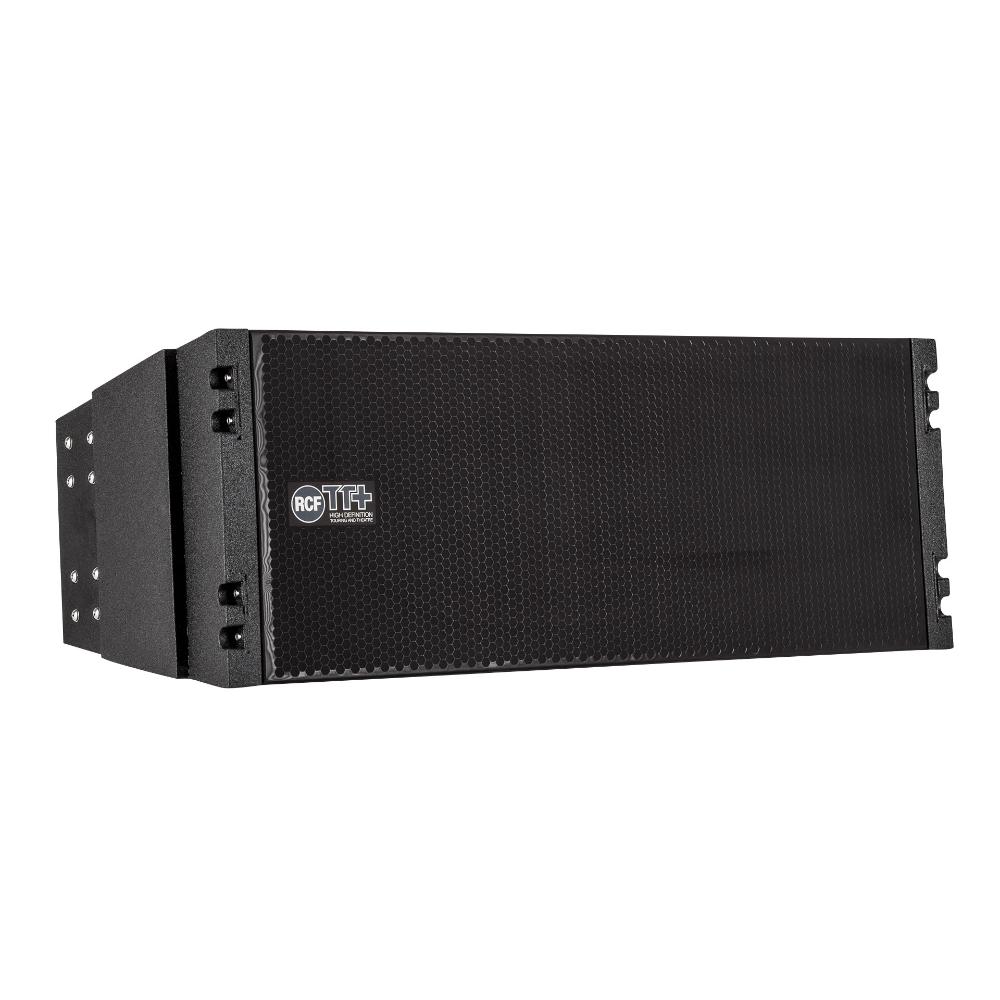

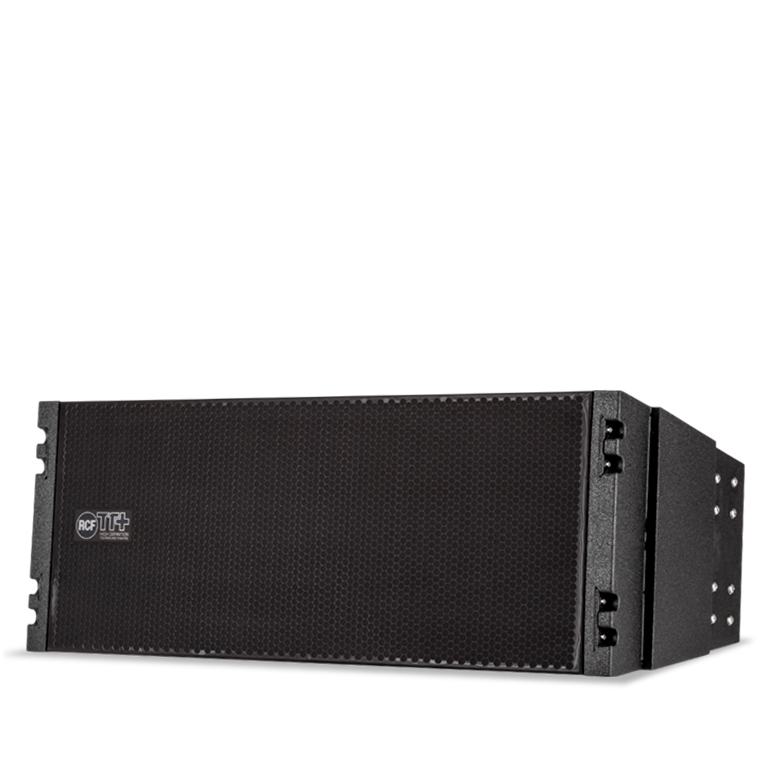

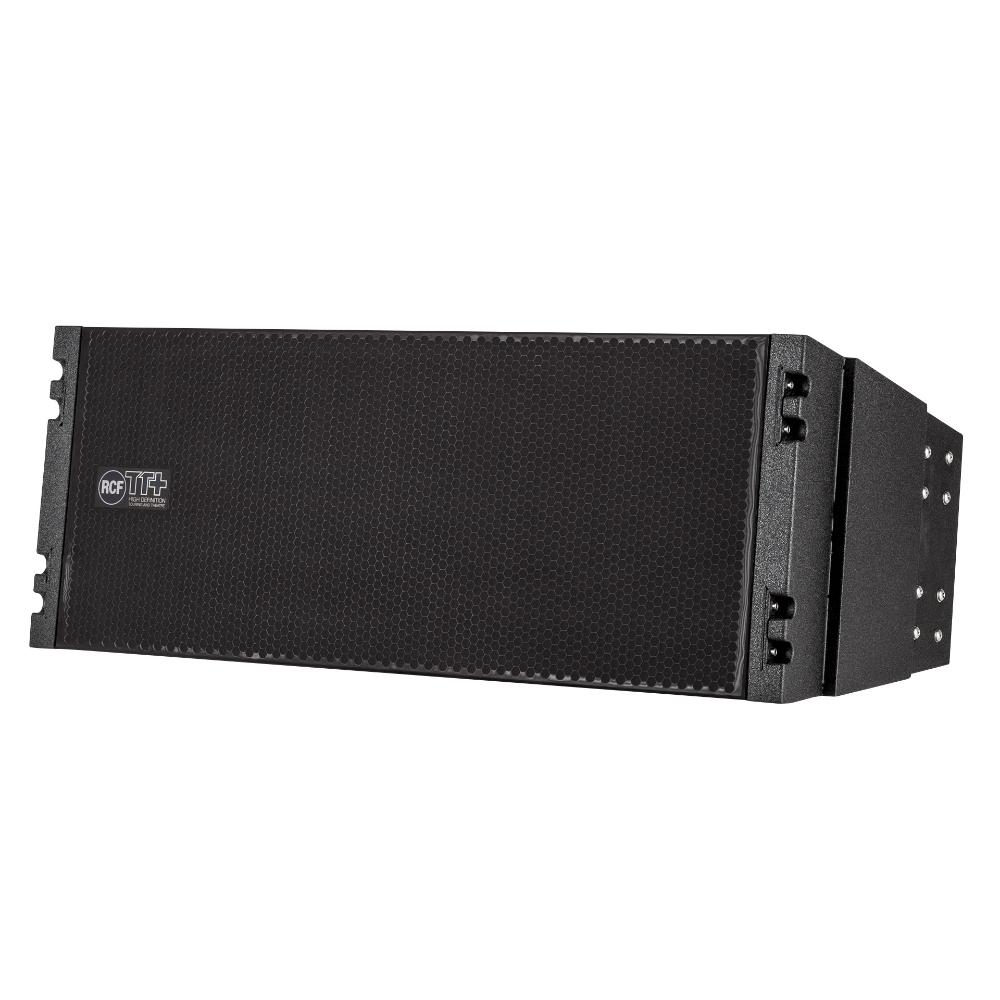

The TTL33-A is a compact, wide dispersion, 3 way active line array module that offers the highest performance from a small size line array.

The incredible high output and dynamics, the extreme accuracy and high frequency extension plus the compact size makes the TTL33-A the ideal tool for outdoor sound reinforcement, live performances and events as well as fixed installations in theatres, concert halls or auditoriums.

    CHI TIẾT KỸ THUẬT

    ACOUSTICAL SPECIFICATIONS

    Frequency Response -3 dB: 60 Hz ÷ 20000 Hz

    Max SPL: 135 dB

    Horizontal coverage angle: 100°

    Vertical coverage angle: 15°

    Compression Driver: 3 X 1.0" neo, 37mm voice coil

    Midrange: 8" neo, 64mm voice coil

    Woofer: 2 x 8" neo, 64 mm voice coil

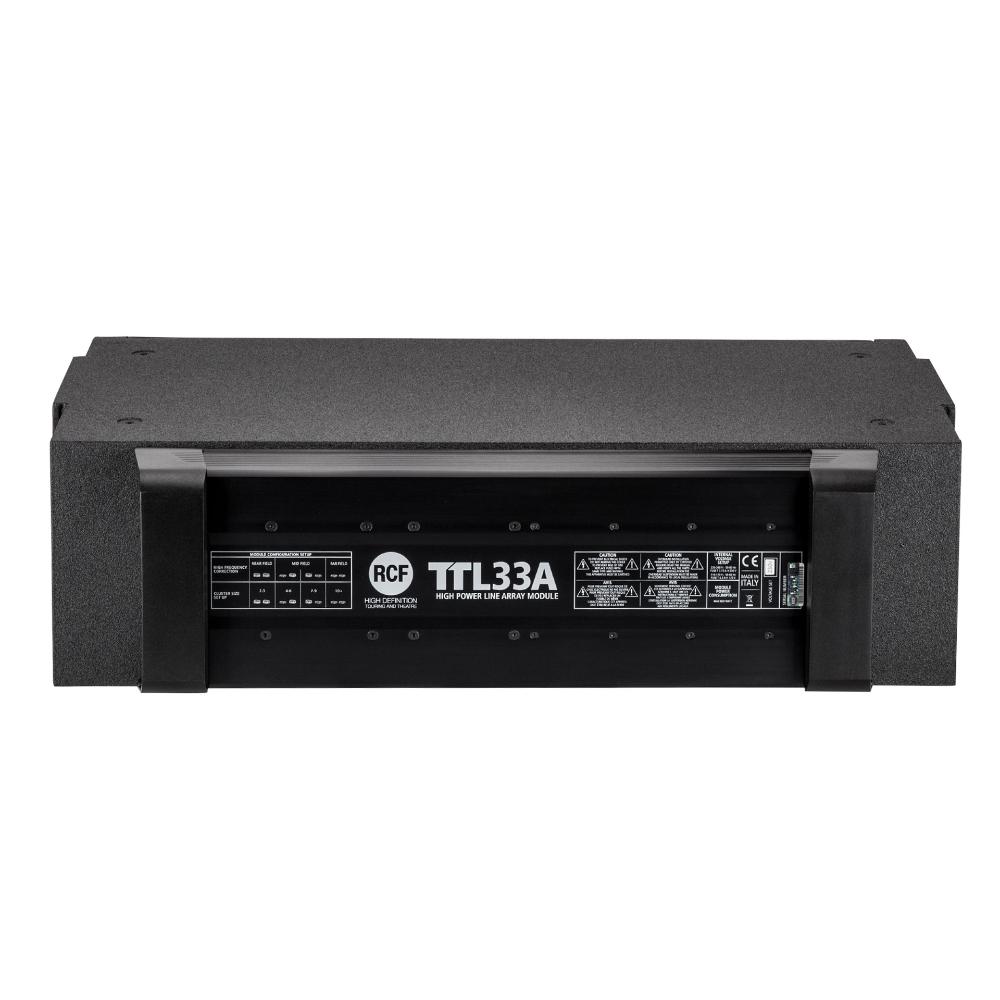

    INPUT/OUTPUT SECTION

    Input signal: Bal/unbal

    Input connectors: XLR, RDNet Ethercon

    Output connectors: XLR, RDNet Ethercon

    Input sensitivity: -2 dBu / + 4 dBu



    PROCESSOR SECTION

    Crossover frequencies: 400 Hz / 1800 Hz

    Protections: Thermal, HF

    Limiter: RMS, fast limiter

    Controls: HF correction, cluster size, HPF



    AMPLIFIER SPECIFICATIONS

    Total power: 750 W RMS

    High frequencies: D/250 W RMS

    Mid frequencies: D/500 W RMS

    Low frequencies: D/500 W RMS

    Cooling: Convection/forced

    Connections: Powercon in/out



    CABINET

    Cabinet Material: Baltic birch

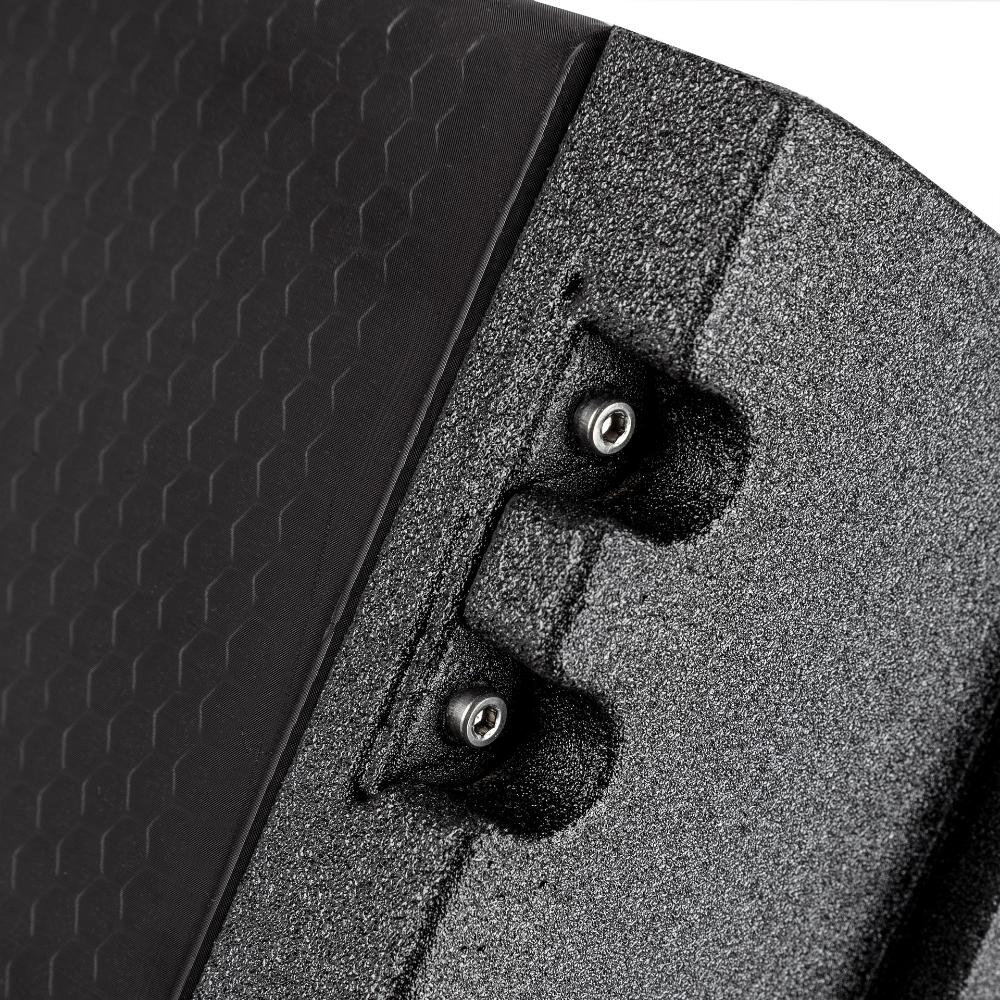

    Hardware: Array side fittings

    Handles: 2 on side

    Colour: Black



    PHYSICAL SPECIFICATIONS

    Height: 300 / 11.8 mm/inch

    Width: 760 / 30.0 mm/inch

    Depth: 450 / 18.2 mm/inch

    Net Weight: 32.5 / 71.5 kg/lbs
